SDM1100LP-7

Teknik Özellikler

Terminal Sayısı

2

Montaj

Surface Mount

Configuration

SINGLE

Diode Type

Schottky

Output Currentmax

1A

Montaj Tipi

Surface Mount

Yayın Yılı

2016

Nem Hassasiyeti (MSL)

1 (Unlimited)

Operating Temperature Junction

-55°C~175°C

Fabrika Tedarik Süresi

16 Weeks

Case Connection

CATHODE

Additional Feature

FREE WHEELING DIODE , HIGH RELIABILITY, LOW POWER LOSS

Nonrep Pk Forward Currentmax

40A

Terminal Pozisyonu

BOTTOM

Parça Durumu

Active

Ambalaj

Tape & Reel (TR)

Number Of Elements

1

Diode Element Material

SILICON

Terminal Kaplaması

Matte Tin (Sn)

Pin Sayısı

2

Terminal Formu

NO LEAD

Number Of Phases

1

ECCN Kodu

EAR99

Current Reverse Leakage Vr

350μA @ 100V

RoHS Durumu

ROHS3 Compliant

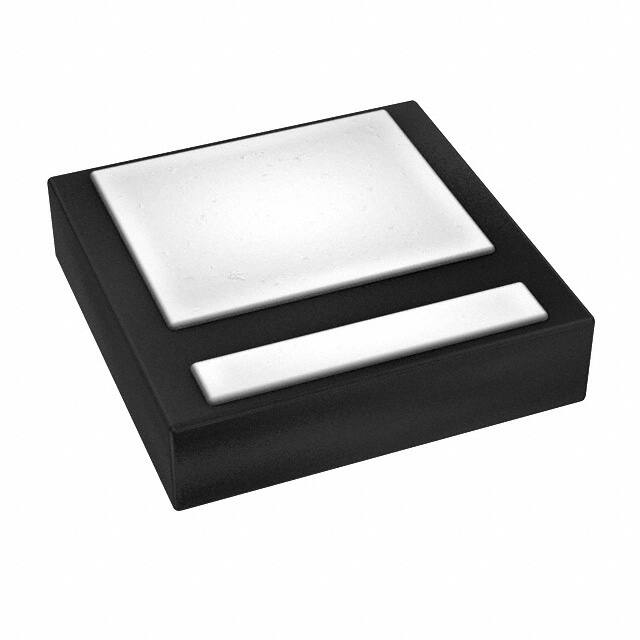

Kılıf / Paket

2-UDFN

Voltage Forward Vf Max If

770mV @ 1A

JESD-609 Kodu

e3

HTS Kodu

8541.10.00.80

Capacitance Vr F

40pF @ 5V 1MHz

Kurşunsuz Kodu

yes

Reverse Currentmax

0.35μA

Speed

Fast Recovery =< 500ns, > 200mA (Io)

Max Reverse Voltage Dc

100V

Seri

Automotive, AEC-Q101

Voltage Dc Reverse Vr Max

100V

Applications

EFFICIENCY

Operating Temperature Max

175°C

Average Rectified Current

1A
