SDM02U30CSP-7

Teknik Özellikler

Diode Element Material

SILICON

Terminal Kaplaması

Nickel/Gold (Ni/Au)

ECCN Kodu

EAR99

Current Reverse Leakage Vr

50μA @ 30V

RoHS Durumu

ROHS3 Compliant

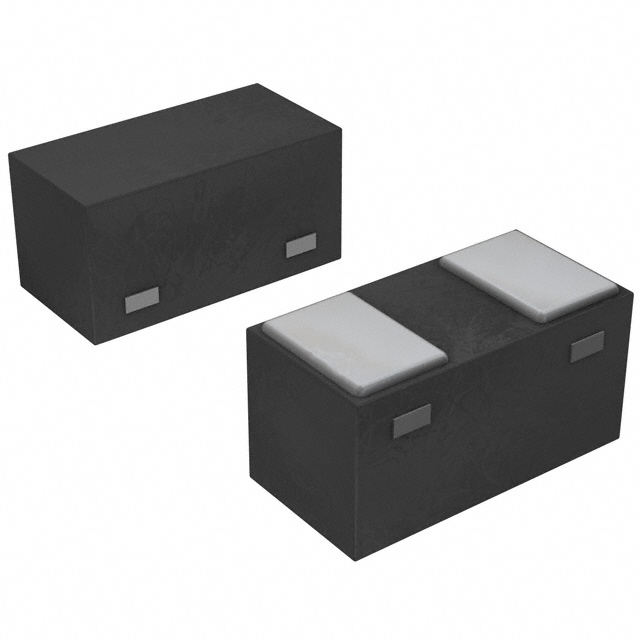

Kılıf / Paket

2-SMD, No Lead

Voltage Forward Vf Max If

500mV @ 200mA

JESD-609 Kodu

e4

Jesd30 Code

R-PBCC-N2

Capacitance Vr F

9pF @ 5V 1MHz

Max Reverse Voltage Dc

30V

Speed

Fast Recovery =< 500ns, > 200mA (Io)

Voltage Dc Reverse Vr Max

30V

Operating Temperature Max

150°C

Average Rectified Current

200mA

Tepe Reflow Sıcaklığı (°C)

NOT SPECIFIED

Terminal Sayısı

2

Tepe Reflow Süresi (maks. sn)

NOT SPECIFIED

Montaj

Surface Mount

Configuration

SINGLE

Diode Type

Schottky

Output Currentmax

0.2A

Nem Hassasiyeti (MSL)

1 (Unlimited)

Yayın Yılı

2016

Montaj Tipi

Surface Mount

Operating Temperature Junction

-55°C~150°C

Fabrika Tedarik Süresi

24 Weeks

Terminal Pozisyonu

BOTTOM

Parça Durumu

Active

Ambalaj

Tape & Reel (TR)

Number Of Elements

1
