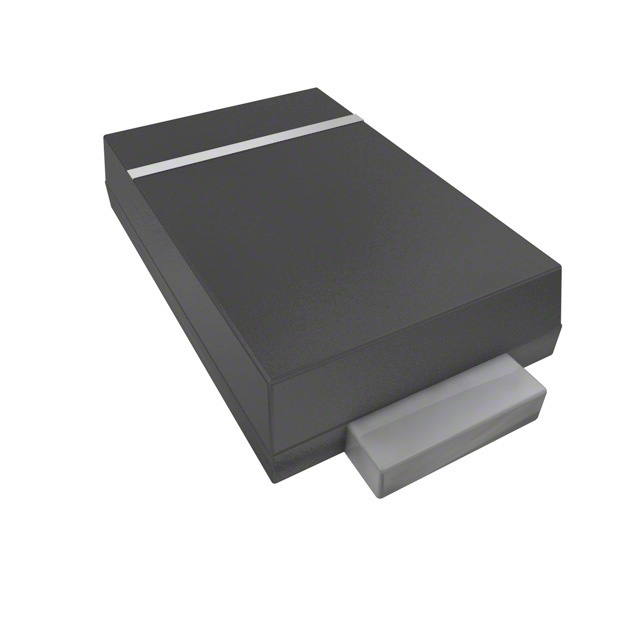

SBRT5A50SAF-13

Teknik Özellikler

Parça Durumu

Active

Montaj

Surface Mount

Min. Çalışma Sıcaklığı

-55°C

Weight

64.013223mg

Terminal Sayısı

2

Tepe Reflow Sıcaklığı (°C)

260

Max Repetitive Reverse Voltage Vrrm

50V

Peak Reverse Current

150μA

Output Currentmax

5A

Reverse Voltage Dc

50V

Nem Hassasiyeti (MSL)

1 (Unlimited)

Operating Temperature Junction

-55°C~150°C

Speed

Standard Recovery >500ns, > 200mA (Io)

Max Forward Surge Current Ifsm

100A

Max Reverse Voltage Dc

50V

Yayın Yılı

2015

Fabrika Tedarik Süresi

32 Weeks

ECCN Kodu

EAR99

Additional Feature

HIGH RELIABILITY

Ambalaj

Cut Tape (CT)

RoHS Durumu

ROHS3 Compliant

Kurşunsuz

Lead Free

Forward Voltage

530mV

Kılıf / Paket

DO-221AC, SMA Flat Leads

Tepe Reflow Süresi (maks. sn)

30

Element Configuration

Single

Terminal Pozisyonu

DUAL

HTS Kodu

8541.10.00.80

JESD-609 Kodu

e3

Applications

EFFICIENCY

Number Of Phases

1

Voltage Forward Vf Max If

530mV @ 5A

Reference Standard

AEC-Q101

Forward Current

5A

Diode Type

Super Barrier

Number Of Elements

1

Temel Parça No

SBRT5A50

Current Reverse Leakage Vr

150μA @ 50V

Average Rectified Current

5A

REACH Uyumluluk Kodu

not_compliant
