SBRT4M30LP-7

Teknik Özellikler

Average Rectified Current

4A

Pin Sayısı

8

Current Reverse Leakage Vr

60μA @ 30V

Configuration

SINGLE

Diode Element Material

SILICON

Seri

TrenchSBR

Capacitance Vr F

150pF @ 30V 1MHz

Montaj Tipi

Surface Mount

Terminal Kaplaması

Nickel/Palladium/Gold (Ni/Pd/Au)

Diode Type

Super Barrier

Number Of Elements

1

Applications

EFFICIENCY

JESD-609 Kodu

e4

Case Connection

CATHODE

Voltage Forward Vf Max If

510mV @ 4A

Number Of Phases

1

Reverse Currentmax

60μA

Tepe Reflow Süresi (maks. sn)

NOT SPECIFIED

Reverse Recovery Time

30 ns

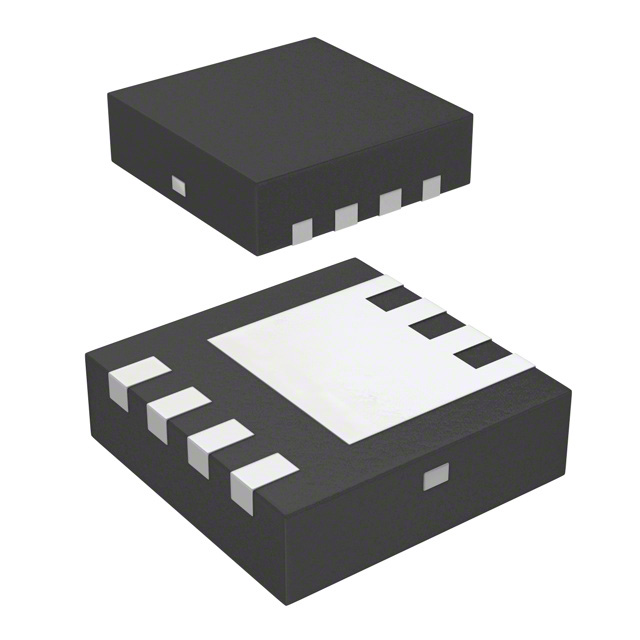

Kılıf / Paket

8-PowerUDFN

Nonrep Pk Forward Currentmax

40A

Terminal Pozisyonu

DUAL

Voltage Dc Reverse Vr Max

30V

ECCN Kodu

EAR99

Fabrika Tedarik Süresi

23 Weeks

Yayın Yılı

2015

RoHS Durumu

ROHS3 Compliant

Ambalaj

Tape & Reel (TR)

Operating Temperature Max

150°C

Operating Temperature Junction

-55°C~150°C

Max Reverse Voltage Dc

30V

Speed

Fast Recovery =< 500ns, > 200mA (Io)

Output Currentmax

4A

Nem Hassasiyeti (MSL)

1 (Unlimited)

Terminal Formu

NO LEAD

Montaj

Surface Mount

Parça Durumu

Active

Tepe Reflow Sıcaklığı (°C)

NOT SPECIFIED

Terminal Sayısı

5

Jesd30 Code

S-PDSO-N5
