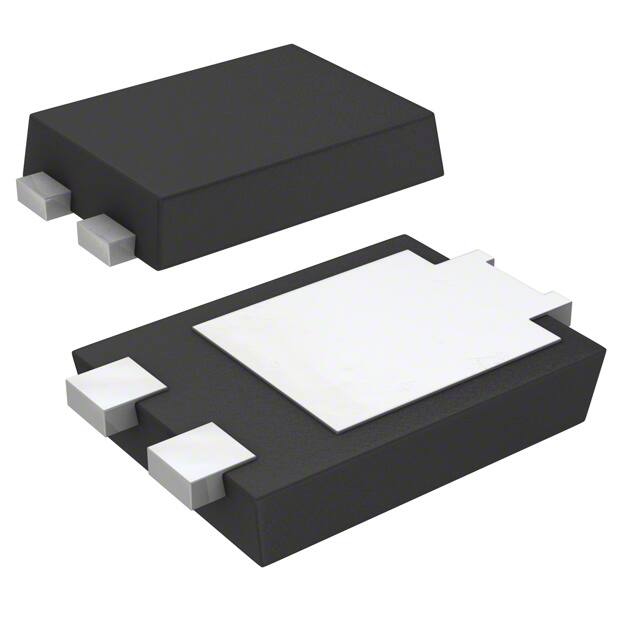

SBR8M100P5-13D

Teknik Özellikler

Terminal Kaplaması

Matte Tin (Sn)

Diode Element Material

SILICON

Seri

Automotive, AEC-Q101

Montaj Tipi

Surface Mount

Current Reverse Leakage Vr

2μA @ 100V

Configuration

SINGLE

REACH Uyumluluk Kodu

not_compliant

Average Rectified Current

8A

Number Of Elements

1

Diode Type

Super Barrier

Number Of Phases

1

Voltage Forward Vf Max If

880mV @ 8A

Case Connection

CATHODE

Applications

GENERAL PURPOSE

JESD-609 Kodu

e3

Voltage Dc Reverse Vr Max

100V

HTS Kodu

8541.10.00.80

Terminal Pozisyonu

DUAL

Kılıf / Paket

PowerDI™ 5

Nonrep Pk Forward Currentmax

130A

Reverse Currentmax

2μA

Tepe Reflow Süresi (maks. sn)

NOT SPECIFIED

Ambalaj

Tape & Reel (TR)

Operating Temperature Max

175°C

RoHS Durumu

ROHS3 Compliant

Fabrika Tedarik Süresi

17 Weeks

ECCN Kodu

EAR99

Kurşunsuz Kodu

yes

Yayın Yılı

2016

Additional Feature

HIGH RELIABILITY

Speed

Standard Recovery >500ns, > 200mA (Io)

Max Reverse Voltage Dc

100V

Operating Temperature Junction

-55°C~175°C

Terminal Formu

FLAT

Nem Hassasiyeti (MSL)

1 (Unlimited)

Output Currentmax

8A

Tepe Reflow Sıcaklığı (°C)

NOT SPECIFIED

Terminal Sayısı

3

Jesd30 Code

R-PDSO-F3

Parça Durumu

Active
