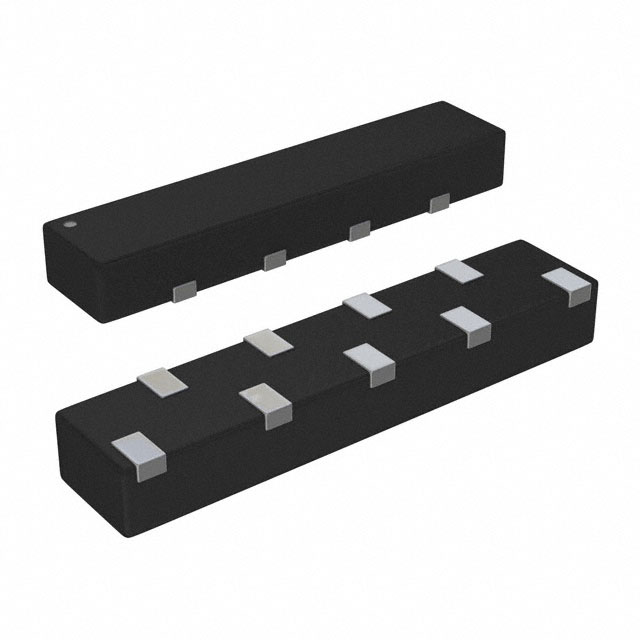

DT1240A-08LP3810-7

Teknik Özellikler

Rep Pk Reverse Voltagemax

3.3V

Power Dissipation Max

0.35W

Terminal Kaplaması

Nickel/Palladium/Gold (Ni/Pd/Au)

Configuration

SINGLE

Polarity

UNIDIRECTIONAL

Montaj Tipi

Surface Mount

Terminal Pozisyonu

DUAL

Fabrika Tedarik Süresi

18 Weeks

Unidirectional Channels

8

Capacitance Frequency

0.6pF @ 1MHz

Current Peak Pulse101000s

5.5A 8/20μs

Voltage Breakdown Min

5V

Applications

DVI, HDMI, USB

Reference Standard

IEC-61000-4-2, 4-5

Yüzey Montaj

YES

Jesd30 Code

R-PDSO-N9

Voltage Reverse Standoff Typ

3.3V Max

Parça Durumu

Active

Çalışma Sıcaklığı

-55°C~85°C TA

Nonrep Peak Rev Power Dismax

55W

Power Peak Pulse

55W

Diode Element Material

SILICON

Ambalaj

Tape & Reel (TR)

Nem Hassasiyeti (MSL)

1 (Unlimited)

Tip

Steering (Rail to Rail)

Yayın Yılı

2017

JESD-609 Kodu

e4

Voltage Clamping Max Ipp

10V

Terminal Sayısı

9

Number Of Elements

1

RoHS Durumu

ROHS3 Compliant

Kılıf / Paket

9-UDFN

Power Line Protection

No
