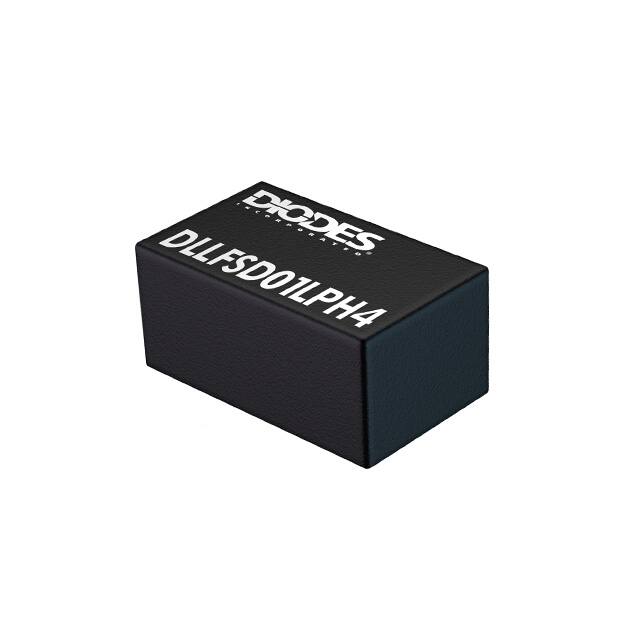

DLLFSD01LPH4-7B

Teknik Özellikler

Pin Sayısı

2

Output Currentmax

0.1A

Speed

Small Signal =< 200mA (Io), Any Speed

JESD-609 Kodu

e4

Kılıf / Paket

0402 (1006 Metric)

Voltage Forward Vf Max If

1.2V @ 100mA

Yayın Yılı

2015

Tepe Reflow Süresi (maks. sn)

NOT SPECIFIED

Number Of Elements

1

Parça Durumu

Active

Ambalaj

Tape & Reel (TR)

ECCN Kodu

EAR99

Montaj Tipi

Surface Mount

Terminal Sayısı

2

Power Dissipation Max

0.35W

Current Reverse Leakage Vr

200nA @ 80V

Diode Element Material

SILICON

Fabrika Tedarik Süresi

19 Weeks

Operating Temperature Max

150°C

Average Rectified Current

100mA

Reverse Recovery Time

4 ns

RoHS Durumu

ROHS3 Compliant

Terminal Kaplaması

Nickel/Palladium/Gold (Ni/Pd/Au)

Terminal Pozisyonu

BOTTOM

Terminal Formu

NO LEAD

Voltage Dc Reverse Vr Max

80V

Operating Temperature Junction

-65°C~150°C

Diode Type

Standard

Capacitance Vr F

2.5pF @ 0V 1MHz

Montaj

Surface Mount

Configuration

SINGLE

Nem Hassasiyeti (MSL)

1 (Unlimited)

Max Reverse Voltage Dc

80V

Tepe Reflow Sıcaklığı (°C)

NOT SPECIFIED
