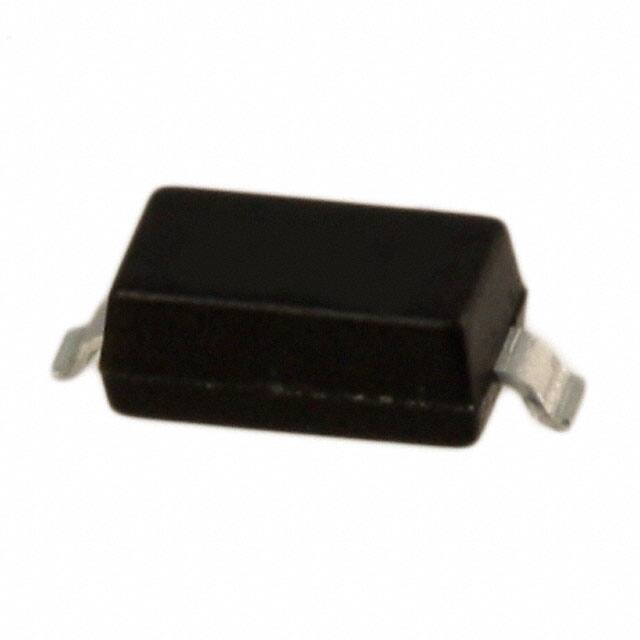

BZT52C4V7-13-F

Teknik Özellikler

Power Rating

500mW

Impedancemax

80Ohm

Terminal Pozisyonu

DUAL

Genişlik

1.7mm

Zener Current

3μA

Number Of Elements

1

Forward Voltage

900mV

Reference Voltage

4.7V

Max Reverse Leakage Current

3μA

Test Current

5mA

Tolerans

±6%

Parça Durumu

Active

Temel Parça No

BZT52C4V7

Voltage Rated Dc

4.7V

Diode Type

ZENER DIODE

Voltage Tolerance

6.38%

JESD-609 Kodu

e3

Element Configuration

Single

Pin Sayısı

2

Polarity

UNIDIRECTIONAL

Terminal Formu

GULL WING

Reference Standard

AEC-Q101

Power Dissipation

500mW

HTS Kodu

8541.10.00.50

Empedans

80Ohm

Peak Reverse Current

3μA

Current Reverse Leakage Vr

3μA @ 2V

Zener Voltage

4.7V

Montaj Tipi

Surface Mount

Kurşunsuz

Lead Free

Ambalaj

Tape & Reel (TR)

Pin Sayısı

2

RoHS Durumu

ROHS3 Compliant

Uzunluk

3.85mm

Diode Element Material

SILICON

Montaj

Surface Mount

Reverse Test Voltage

2V

Terminal Sayısı

2

Esd Protection

No

Çalışma Sıcaklığı

-65°C~150°C
