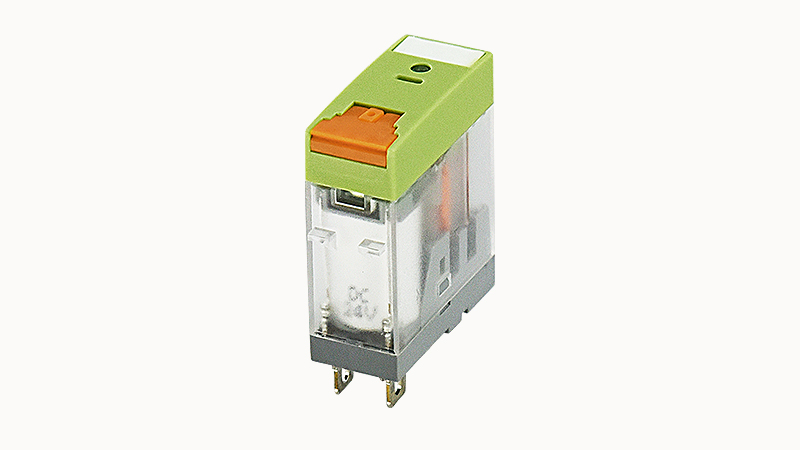

Single relay-DRPT-1C-LR-A220-02A(H)

Teknik Özellikler

Contact Resistance

≤100mΩ

Test Voltage Relay Coilrelay Contact

1500VAC/1min

Maximum Switching Frequency Mechanical

18000 times/h

Ambient Temperature Storagetransportation

-40 °C ... +85 °C

Uzunluk

29mm

Ambient Temperature Operation

-40 °C ... +85 °C

Power Consumption Under Rated Conditions

0.8VA

Genişlik

13mm

Electricallife

>1×105

Installation Location

Arbitrary

Maximum Switching Frequency Rated Load

1800 times/h

Action Time

<20ms

Protection Level

IP50

Standardsregulations

IEC 61810-1 IEC 60664

Operating Voltage

≤75%

Reset Voltage

≥10%

Contact Current Maximum

12A

Maximum Allowable Voltage

1.1

Environment Humidity

35%~85%RH

Insulation

Basic isolation

High

29.2mm

Vibration Resistant

10-55Hz

Withstand Voltage Between Contacts Of The Same Pole

1000VAC/1min

Test Voltage Pdtpdt

1000VAC/1min

Contact Materials

Ag alloy

Maximum Contact Voltage

AC240V DC28V

Contact Composition

1C

Reset Time

<20ms

Coilresistance

23114Ω

Typical Input Current Under Un

22mA

Overvoltage Category

Ⅲ

Shock Proof

10G

Withstand Voltage Between Coil And Contact

1500VAC/1min

Pollution Level

3

Operation Mode

100% work factor

Mechanical Life

>1×107

Rated Input Voltage Un

220VAC

Insulation Resistance

≥100MΩ

Contact Mechanism

single
