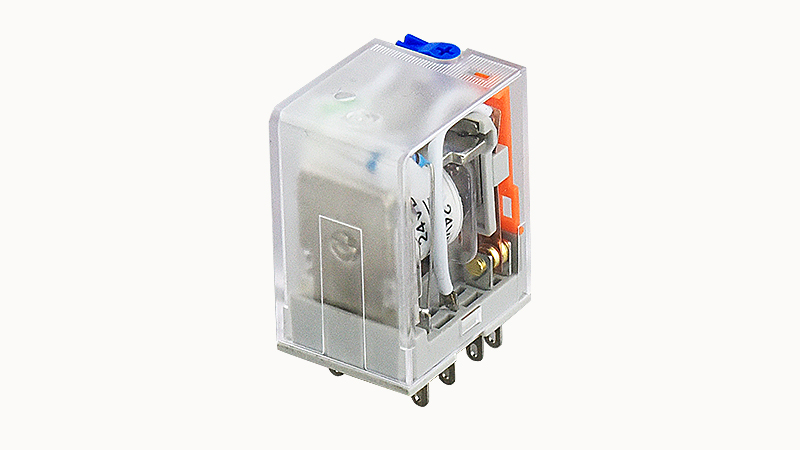

Single relay-DRPE-4C-LR-A220-07A(H)

Teknik Özellikler

Pollution Level

3

Withstand Voltage Between Coil And Contact

1500VAC/1min

Insulation Resistance

≥100MΩ

Contact Mechanism

single

Operation Mode

100% work factor

Withstand Voltage Between Different Pole Contacts

1500VAC/1min

Mechanical Life

>1×107

Rated Input Voltage Un

220VAC

Typical Input Current Under Un

5.5mA

Maximum Contact Current

5A

Coilresistance

14116Ω

Overvoltage Category

Ⅲ

Shock Proof

10G

Test Voltage Pdtpdt

1200VAC/1min

Contact Materials

Ag alloy

Indicator Light

red

Vibration Resistant

10-55Hz

Withstand Voltage Between Contacts Of The Same Pole

1200VAC/1min

Maximum Contact Voltage

AC240V DC28V

Contact Composition

4C

Electricallife

>1×105

Installation Location

Arbitrary

Test Voltage Relay Coilrelay Contact

1500VAC/1min

Contact Resistance

≤100mΩ

Maximum Switching Frequency Mechanical

18000 times/h

Ambient Temperature Storagetransportation

-25 °C ... 55 °C

Uzunluk

27.4mm

Ambient Temperature Operation

-25 °C ... 55 °C

Power Consumption Under Rated Conditions

1.2VA

Operating Voltage

≤80%

Reset Voltage

≥30%

Maximum Allowable Voltage

1.1

Environment Humidity

35%~85%RH

Insulation

Basic isolation

High

34.7mm

Maximum Switching Frequency Rated Load

1800 times/h

Action Time

<20ms

Protection Level

IP50

Standardsregulations

IEC 61810-1 IEC 60664
