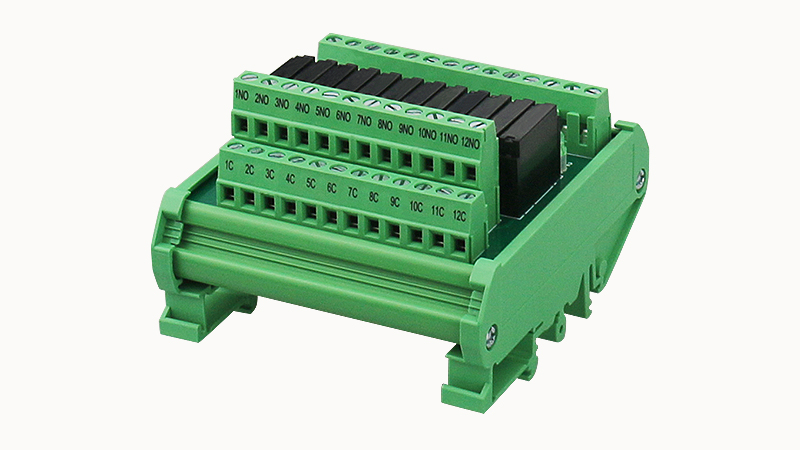

Relay module-DM72-RMUS-12-PN-1-44-00A(H)

Teknik Özellikler

Input Voltage Range Relative To Un

0.9....1.1

Flexible Conductor Cross Section

1.0 ... 2.5mm²

Rated Input Voltage

24VDC

Connection Method

screw connection

Protected Name

Polarity protection

Ambient Temperature Operation

-20 °C ... 70 °C

Number Of Digits

twenty four

Genişlik

90mm

Standardsregulations

IEC61810

Connection Name

output

Overvoltage Category

Ⅲ

Stripping Length

6-7mm

Fault Monitoring Open Circuitshort Circuit

no

Thread

M3

Packing Unit

1

Uzunluk

80mm

Limit Continuous Current

5A

Yükseklik

60mm

Installation Location

Arbitrary

Maximum Switching Voltage

240VAC 30VDC

Pollution Level

3

Protection Circuitscomponents

Polarity Protection Diode

Connection Volume

1

Hard Conductor Cross Section

1.0 ... 2.5mm²

Products Weight Without Packaging

192

Contact Type

1NO

Renk

green

Shell Insulation Materials

PVC/PA66

Number Of Channels

12

Connectable Guide Cross Section Awg

28...12AWG

Ambient Temperature Storagetransportation

-20 °C ... 70 °C

Status Displaychannel

green
