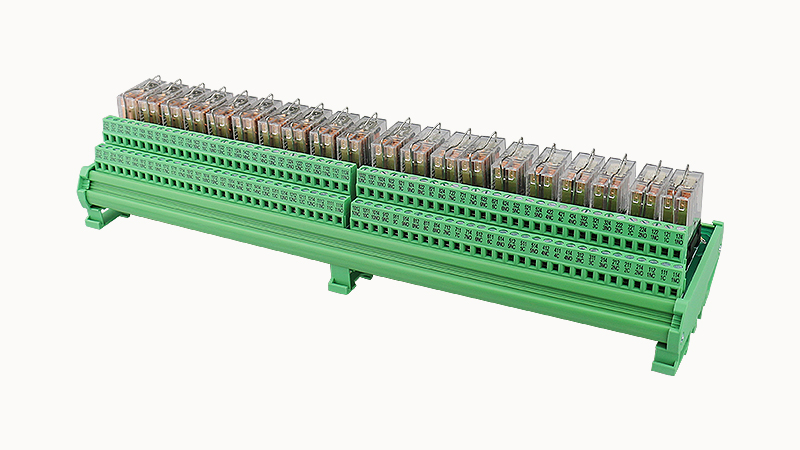

Relay module-DM72-RM-20-PN-4-44-10A(H)

Teknik Özellikler

Limit Continuous Current

5A

Uzunluk

319mm

Packing Unit

1

Thread

M3

Yükseklik

70mm

Genişlik

90mm

Number Of Digits

60

Ambient Temperature Operation

-20 °C ... 70 °C

Protected Name

Polarity protection

Flexible Conductor Cross Section

1.0 ... 2.5mm²

Rated Input Voltage

24VDC

Connection Method

screw connection

Input Voltage Range Relative To Un

0.9....1.1

Fault Monitoring Open Circuitshort Circuit

no

Stripping Length

6-7mm

Overvoltage Category

Ⅲ

Connection Name

output

Standardsregulations

IEC61810

Number Of Channels

20

Shell Insulation Materials

PVC/PA66

Renk

green

Contact Type

2C/O

Status Displaychannel

green

Ambient Temperature Storagetransportation

-20 °C ... 70 °C

Connectable Guide Cross Section Awg

28...12AWG

Hard Conductor Cross Section

1.0 ... 2.5mm²

Connection Volume

2

Protection Circuitscomponents

Polarity Protection Diode

Pollution Level

3

Installation Location

Arbitrary

Maximum Switching Voltage

240VAC 30VDC

Products Weight Without Packaging

874
