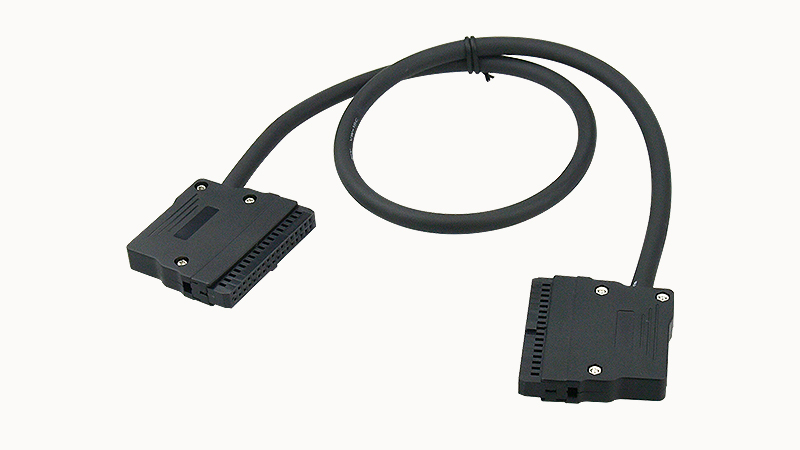

MIL cable-DX210-3S-500-00A(H)

Teknik Özellikler

Connection Meets Standards

UL758

Ambient Temperature Operation

-20 °C ... 80 °C

Flame Retardant

ULVW-1

Products Weight Without Packaging

50

Connection Method

IDC/MIL female connector

Single Strand Crosssectional Area

0.08mm²

Single Stranded Wire Material

Tinned copper

Maximum Current Carrying Capacity Of Each Path

0.7A

Cable Outer Diameter

7.6mm

Oil Resistance

Oil resistant

Exit Angle

90°

Number Of Digits

34

Outer Sheathcolor

black

Connection Name

On-site side

Single Strand Cross Section Awg

28

Shield

Yes

Kablo Uzunluğu

0.5米

Maximum Allowable Working Voltage

30VDC

Spacing

2.54mm

Connection Volume

1

Ambient Temperature Storagetransportation

-20 °C ... 80 °C

Outer Sheath Material

PVC

Gasoline Resistance

≤246Ω/KM

Packing Unit

1

Single Wire Number Of Twisted Wires

34
