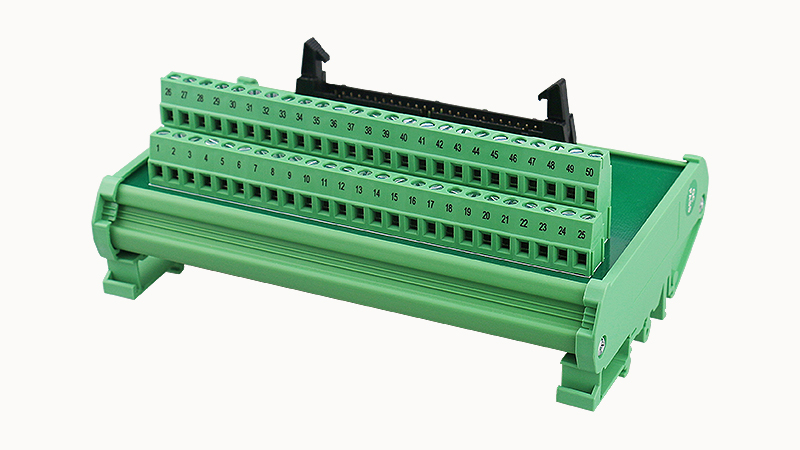

Interface module-DM72-IDC-50-50-4Y-00A(H)

Teknik Özellikler

Yükseklik

62mm

Signal Points

50

Spacing

2.54mm

Packing Unit

2

Genişlik

90mm

Connection Meets Standards

UL1059

Rated Overvoltage

0.5kV

Connection Volume

1

Stripping Length

6-7mm

Ambient Temperature Operation

-20 °C ... 50 °C

Cross Section Of Flexible Conductor

1.0 mm² ... 2.5 mm²

Overvoltage Category

Ⅲ

Connection Name

Control system side

Flame Retardant Grade In Line With Ul94

V0

Uzunluk

144.5mm

Hard Wire Cross Section

1.0 mm² ... 2.5 mm²

Products Weight Without Packaging

215

Connectable Guide Cross Section Awg

28-12AWG

Connection Method

IDC connection

Screw Thread

M3

Pollution Level

3

Standardsregulations

IEC61810

Maximum Allowable Current

1A

Ambient Temperature Storagetransportation

-20 °C ... 50 °C

Installation Location

Arbitrary

Number Of Digits

50

Maximum Allowable Working Voltage

30VDC

Status Display

no
