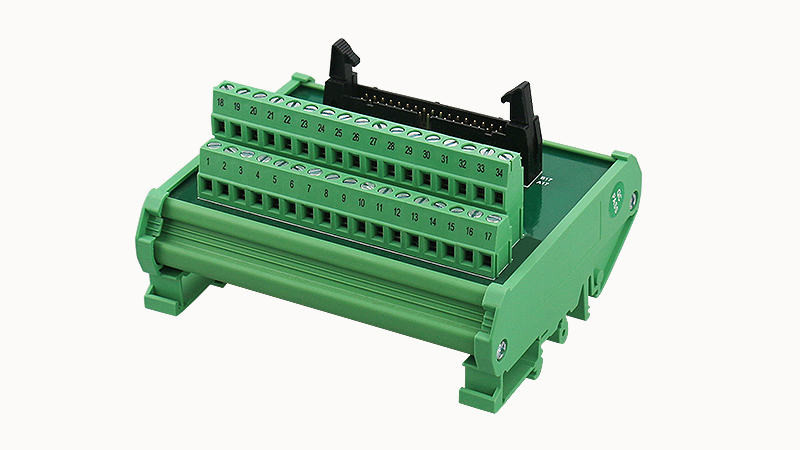

Interface module-DM72-IDC-34-34-4Y-00A(H)

Teknik Özellikler

Ambient Temperature Operation

-20 °C ... 50 °C

Stripping Length

6-7mm

Cross Section Of Flexible Conductor

1.0 mm² ... 2.5 mm²

Rated Overvoltage

0.5kV

Connection Volume

1

Connection Name

Control system side

Flame Retardant Grade In Line With Ul94

V0

Overvoltage Category

Ⅲ

Signal Points

34

Spacing

2.54mm

Yükseklik

62mm

Genişlik

90mm

Connection Meets Standards

UL1059

Packing Unit

2

Ambient Temperature Storagetransportation

-20 °C ... 50 °C

Status Display

no

Installation Location

Arbitrary

Number Of Digits

34

Maximum Allowable Working Voltage

30VDC

Connectable Guide Cross Section Awg

28-12AWG

Products Weight Without Packaging

215

Uzunluk

104.5mm

Hard Wire Cross Section

1.0 mm² ... 2.5 mm²

Standardsregulations

IEC61810

Pollution Level

3

Maximum Allowable Current

1A

Connection Method

IDC connection

Screw Thread

M3
