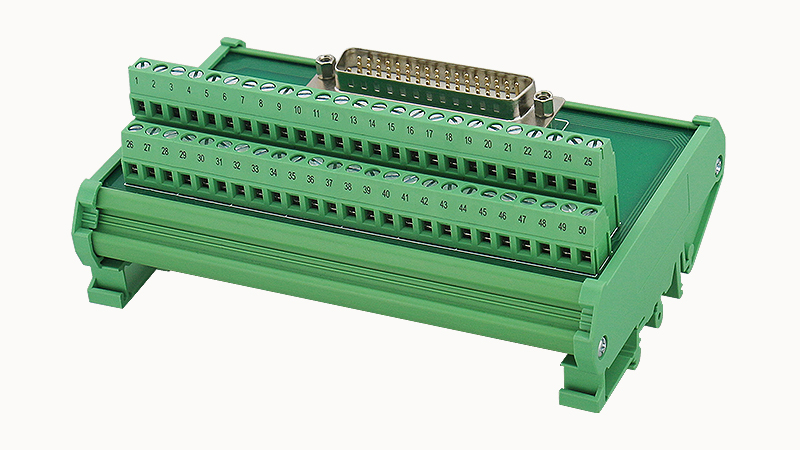

Interface module-DM72-DBK-50-50-4Y-00A(H)

Teknik Özellikler

Ambient Temperature Storagetransportation

-20 °C ... 50 °C

Number Of Digits

50

Installation Location

Arbitrary

Maximum Allowable Working Voltage

30VDC

Status Display

no

Uzunluk

140mm

Hard Wire Cross Section

1.0 mm² ... 2.5 mm²

Connectable Guide Cross Section Awg

28-12AWG

Products Weight Without Packaging

210

Connection Method

D-SUB connection

Screw Thread

M3

Standardsregulations

IEC61810

Pollution Level

3

Maximum Allowable Current

2A

Rated Overvoltage

0.5kV

Connection Volume

1

Ambient Temperature Operation

-20 °C ... 50 °C

Stripping Length

6-7mm

Cross Section Of Flexible Conductor

1.0 mm² ... 2.5 mm²

Overvoltage Category

Ⅲ

Connection Name

Control system side

Flame Retardant Grade In Line With Ul94

V0

Yükseklik

59mm

Signal Points

50

Spacing

2.77mm

Packing Unit

2

Genişlik

90mm

Connection Meets Standards

UL1059
