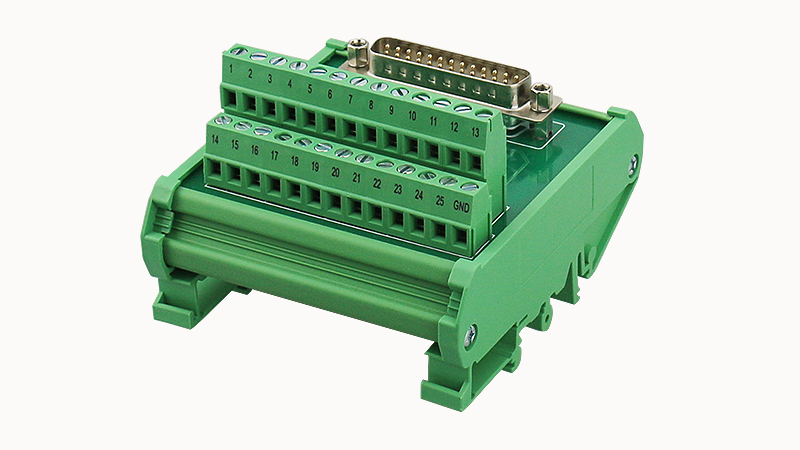

Interface module-DM72-DBK-25-25-4Y-00A(H)

Teknik Özellikler

Flame Retardant Grade In Line With Ul94

V0

Connection Name

Control system side

Overvoltage Category

Ⅲ

Cross Section Of Flexible Conductor

1.0 mm² ... 2.5 mm²

Ambient Temperature Operation

-20 °C ... 50 °C

Stripping Length

6-7mm

Connection Volume

1

Rated Overvoltage

0.5kV

Connection Meets Standards

UL1059

Genişlik

90mm

Packing Unit

3

Signal Points

25

Spacing

2.77mm

Yükseklik

59mm

Status Display

no

Maximum Allowable Working Voltage

30VDC

Number Of Digits

25

Installation Location

Arbitrary

Ambient Temperature Storagetransportation

-20 °C ... 50 °C

Maximum Allowable Current

2A

Pollution Level

3

Standardsregulations

IEC61810

Screw Thread

M3

Connection Method

D-SUB connection

Connectable Guide Cross Section Awg

28-12AWG

Products Weight Without Packaging

125

Hard Wire Cross Section

1.0 mm² ... 2.5 mm²

Uzunluk

79mm
