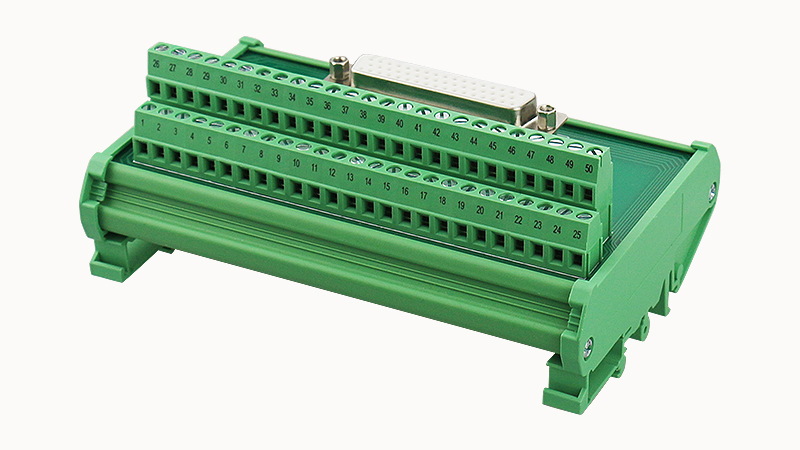

Interface module-DM72-DBJ-50-50-4Y-00A(H)

Teknik Özellikler

Connectable Guide Cross Section Awg

28-12AWG

Products Weight Without Packaging

208

Hard Wire Cross Section

1.0 mm² ... 2.5 mm²

Uzunluk

140mm

Maximum Allowable Current

2A

Standardsregulations

IEC61810

Pollution Level

3

Screw Thread

M3

Connection Method

D-SUB connection

Ambient Temperature Storagetransportation

-20 °C ... 70 °C

Status Display

no

Maximum Allowable Working Voltage

30VDC

Number Of Digits

50

Installation Location

Arbitrary

Signal Points

50

Spacing

2.77mm

Yükseklik

59mm

Connection Meets Standards

UL1059

Genişlik

90mm

Packing Unit

2

Cross Section Of Flexible Conductor

1.0 mm² ... 2.5 mm²

Ambient Temperature Operation

-20 °C ... 70 °C

Stripping Length

6-7mm

Connection Volume

1

Rated Overvoltage

0.5kV

Flame Retardant Grade In Line With Ul94

V0

Connection Name

Control system side

Overvoltage Category

Ⅲ
