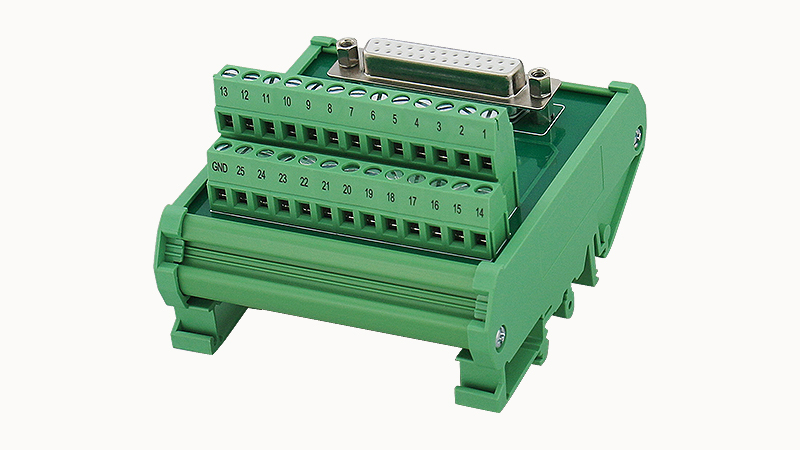

Interface module-DM72-DBJ-25-25-4Y-00A(H)

Teknik Özellikler

Packing Unit

3

Genişlik

90mm

Connection Meets Standards

UL1059

Yükseklik

59mm

Signal Points

25

Spacing

2.77mm

Overvoltage Category

Ⅲ

Connection Name

Control system side

Flame Retardant Grade In Line With Ul94

V0

Rated Overvoltage

0.5kV

Connection Volume

1

Ambient Temperature Operation

-20 °C ... 70 °C

Stripping Length

6-7mm

Cross Section Of Flexible Conductor

1.0 mm² ... 2.5 mm²

Connection Method

D-SUB connection

Screw Thread

M3

Pollution Level

3

Standardsregulations

IEC61810

Maximum Allowable Current

2A

Uzunluk

79mm

Hard Wire Cross Section

1.0 mm² ... 2.5 mm²

Connectable Guide Cross Section Awg

28-12AWG

Products Weight Without Packaging

122

Installation Location

Arbitrary

Number Of Digits

25

Maximum Allowable Working Voltage

30VDC

Status Display

no

Ambient Temperature Storagetransportation

-20 °C ... 70 °C
