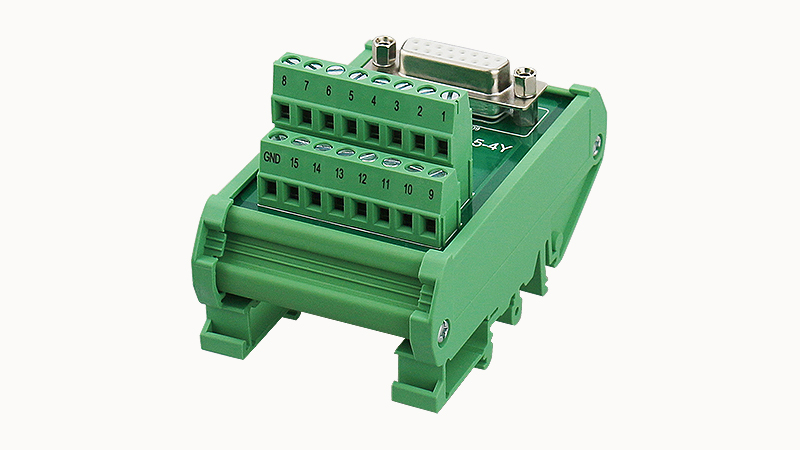

Interface module-DM72-DBJ-15-15-4Y-00A(H)

Teknik Özellikler

Standardsregulations

IEC61810

Pollution Level

3

Maximum Allowable Current

2A

Connection Method

D-SUB connection

Screw Thread

M3

Products Weight Without Packaging

85

Connectable Guide Cross Section Awg

28-12AWG

Uzunluk

54mm

Hard Wire Cross Section

1.0 mm² ... 2.5 mm²

Status Display

no

Number Of Digits

15

Installation Location

Arbitrary

Maximum Allowable Working Voltage

30VDC

Ambient Temperature Storagetransportation

-20 °C ... 70 °C

Genişlik

90mm

Connection Meets Standards

UL1059

Packing Unit

6

Spacing

2.77mm

Signal Points

15

Yükseklik

59mm

Connection Name

Control system side

Flame Retardant Grade In Line With Ul94

V0

Overvoltage Category

Ⅲ

Ambient Temperature Operation

-20 °C ... 70 °C

Stripping Length

6-7mm

Cross Section Of Flexible Conductor

1.0 mm² ... 2.5 mm²

Rated Overvoltage

0.5kV

Connection Volume

1
