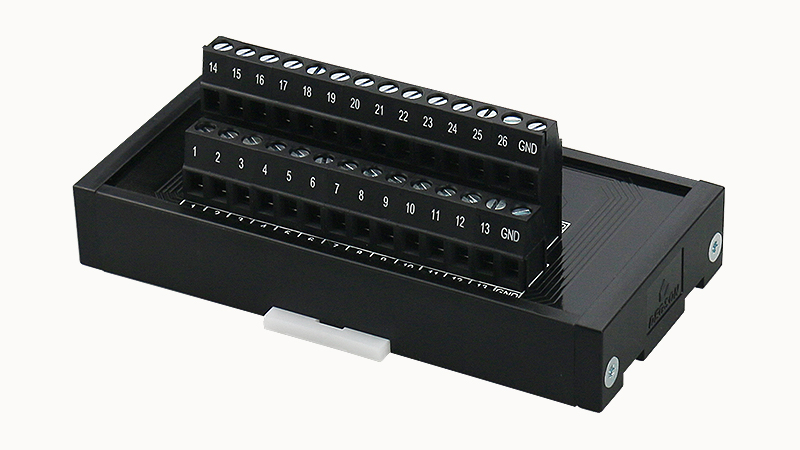

Interface module-DM50-MDR-26-26-4Y-00A(H)

Teknik Özellikler

Overvoltage Category

Ⅲ

Flame Retardant Grade In Line With Ul94

V0

Connection Name

Control system side

Connection Volume

1

Rated Overvoltage

0.5kV

Cross Section Of Flexible Conductor

1.0 mm² ... 2.5 mm²

Ambient Temperature Operation

-20 °C ... 70 °C

Stripping Length

6-7mm

Packing Unit

1

Connection Meets Standards

UL1059

Genişlik

57mm

Yükseklik

42mm

Signal Points

26

Spacing

1.27mm

Wire Harness

DX220-2S-500-00A(H)|

Maximum Allowable Working Voltage

30VDC

Installation Location

Arbitrary

Number Of Digits

26

Status Display

no

Ambient Temperature Storagetransportation

-20 °C ... 70 °C

Screw Thread

M3

Connection Method

MDR connection

Maximum Allowable Current

0.5A

Standardsregulations

IEC61810

Pollution Level

3

Hard Wire Cross Section

1.0 mm² ... 2.5 mm²

Uzunluk

111mm

Connectable Guide Cross Section Awg

28-12AWG

Products Weight Without Packaging

137
