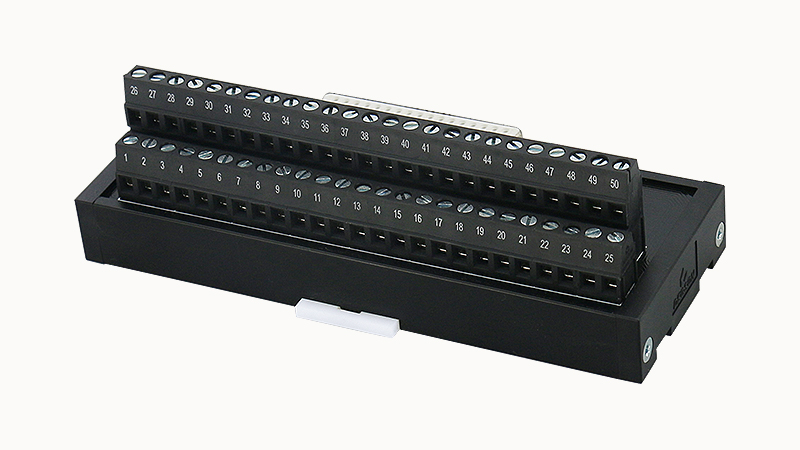

Interface module-DM50-DBJ-50-50-4Y-00A(H)

Teknik Özellikler

Connection Name

Control system side

Flame Retardant Grade In Line With Ul94

V0

Overvoltage Category

Ⅲ

Stripping Length

6-7mm

Ambient Temperature Operation

-20 °C ... 70 °C

Cross Section Of Flexible Conductor

1.0 mm² ... 2.5 mm²

Rated Overvoltage

0.5kV

Connection Volume

1

Genişlik

57mm

Connection Meets Standards

UL1059

Packing Unit

6

Signal Points

50

Spacing

2.77mm

Yükseklik

42mm

Status Display

no

Number Of Digits

50

Installation Location

Arbitrary

Maximum Allowable Working Voltage

30VDC

Ambient Temperature Storagetransportation

-20 °C ... 70 °C

Standardsregulations

IEC61810

Pollution Level

3

Maximum Allowable Current

2A

Connection Method

D-SUB connection

Screw Thread

M3

Connectable Guide Cross Section Awg

28-12AWG

Products Weight Without Packaging

80

Uzunluk

143mm

Hard Wire Cross Section

1.0 mm² ... 2.5 mm²
