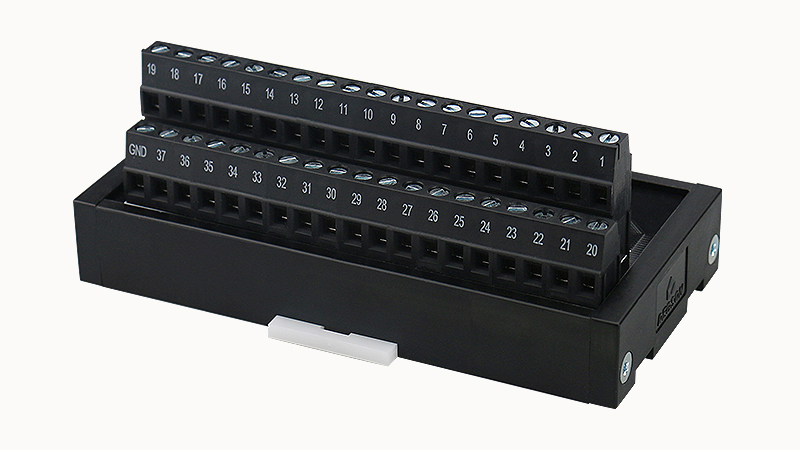

Interface module-DM50-DBJ-37-37-4Y-00A(H)

Teknik Özellikler

Maximum Allowable Current

2A

Standardsregulations

IEC61810

Pollution Level

3

Screw Thread

M3

Connection Method

D-SUB connection

Products Weight Without Packaging

80

Connectable Guide Cross Section Awg

28-12AWG

Hard Wire Cross Section

1.0 mm² ... 2.5 mm²

Uzunluk

111mm

Status Display

no

Maximum Allowable Working Voltage

30VDC

Number Of Digits

37

Installation Location

Arbitrary

Ambient Temperature Storagetransportation

-20 °C ... 70 °C

Connection Meets Standards

UL1059

Genişlik

57mm

Packing Unit

6

Spacing

2.77mm

Signal Points

37

Yükseklik

42mm

Flame Retardant Grade In Line With Ul94

V0

Connection Name

Control system side

Overvoltage Category

Ⅲ

Cross Section Of Flexible Conductor

1.0 mm² ... 2.5 mm²

Ambient Temperature Operation

-20 °C ... 70 °C

Stripping Length

6-7mm

Connection Volume

1

Rated Overvoltage

0.5kV
