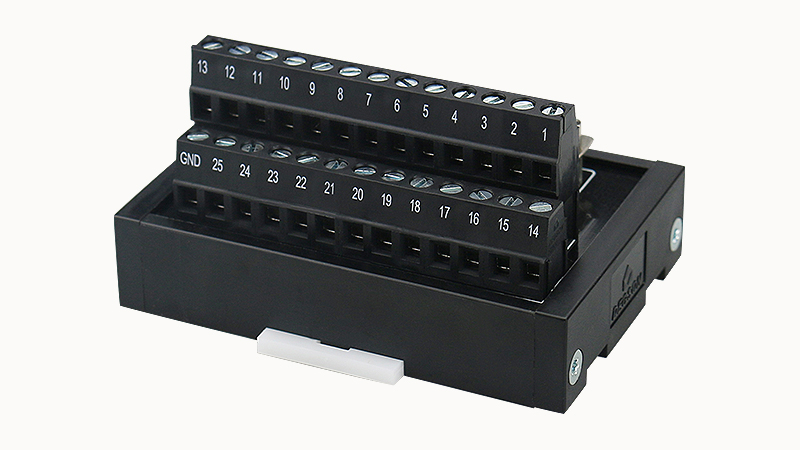

Interface module-DM50-DBJ-25-25-4Y-00A(H)

Teknik Özellikler

Overvoltage Category

Ⅲ

Flame Retardant Grade In Line With Ul94

V0

Connection Name

Control system side

Connection Volume

1

Rated Overvoltage

0.5kV

Cross Section Of Flexible Conductor

1.0 mm² ... 2.5 mm²

Stripping Length

6-7mm

Ambient Temperature Operation

-20 °C ... 70 °C

Packing Unit

6

Connection Meets Standards

UL1059

Genişlik

57mm

Yükseklik

42mm

Spacing

2.77mm

Signal Points

25

Maximum Allowable Working Voltage

30VDC

Installation Location

Arbitrary

Number Of Digits

25

Status Display

no

Ambient Temperature Storagetransportation

-20 °C ... 70 °C

Screw Thread

M3

Connection Method

D-SUB connection

Maximum Allowable Current

2A

Pollution Level

3

Standardsregulations

IEC61810

Hard Wire Cross Section

1.0 mm² ... 2.5 mm²

Uzunluk

81mm

Connectable Guide Cross Section Awg

28-12AWG

Products Weight Without Packaging

80
