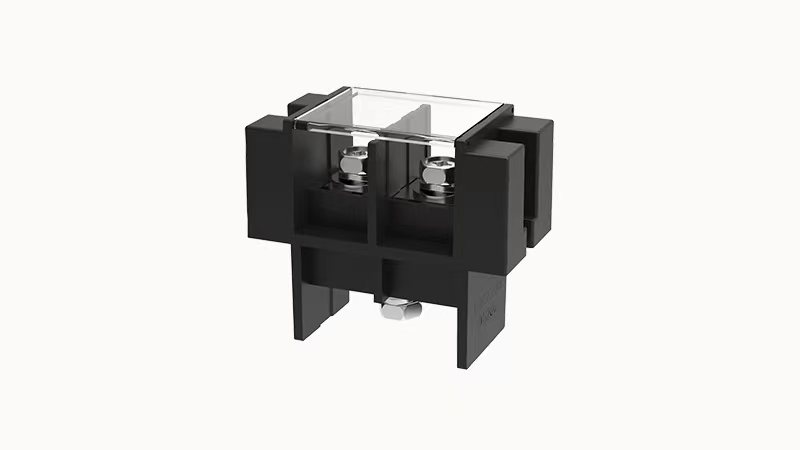

DG200D-A-02P-13-00Z(H)-02P

Teknik Özellikler

Rated Voltage C

600V

Packing Unit

12

Rated Voltage B

600V

Ambient Temperature Operation

-40℃~105℃(depending on derating curve)

Products Weight Without Packaging

180

Pluggable Or Not

no

Connection Method

screw connection

Contact Materials

copper

Rated Voltage D

600V

Type Of Installation

PCB welding

Pin Arrangement

Single row in a straight line

Screw Thread

M8

Screwdriver

Phillips screwdriver

Rated Current C

200A

Rated Current B

200A

Torque

6.0N.m

Contact Point Metal Surface

Nickel plating

Pitch

27mm

Flammability Rating

UL94V-0

Rated Current D

5A

Insulating Material Group

Ⅲa

Environmental Items

Compliant with REACH/RoHS

Test Specification

UL1059

Awg

2~3/0AWG

Insulation Materials Main Class

PA66+GF

Number Of Potentials

2
