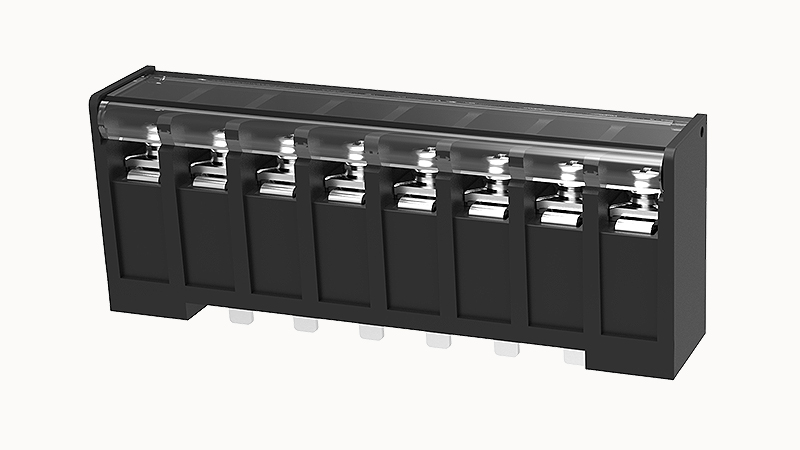

DG1450H-B-30A(H)-08P

Teknik Özellikler

Insulating Material Group

Ⅲa

Environmental Items

Compliant with REACH/RoHS

Products Weight Without Packaging

168.3

Pin Arrangement

Single row in a straight line

Pluggable Or Not

no

Screwdriver

slotted-phillips screwdriver

Rated Voltage D

600V

Conductor Cross Section Solid

0.5~10mm²

Test Specification

UL1059

Rated Voltage B

600V

Type Of Installation

PCB welding

Ambient Temperature Operation

-40℃~125℃(depending on derating curve)

Insulation Materials

PBT

Rated Current D

5A

Connection Method

Screw connection

Rated Current C

40A

Rated Current B

40A

Contact Point Metal Surface

tin-plated

Packing Unit

5

Flammability Rating

UL94V-0

Number Of Potentials

8

Rated Voltage C

600V

Conductor Cross Section Flexible

0.5~10mm²

Awg

22~8AWG

Rated Current

Rated current;76A

Process

Wave soldering/manual soldering

Pitch

14.5mm

Sıra Sayısı

1

Screw Thread

M5

Contact Materials

Copper alloy
