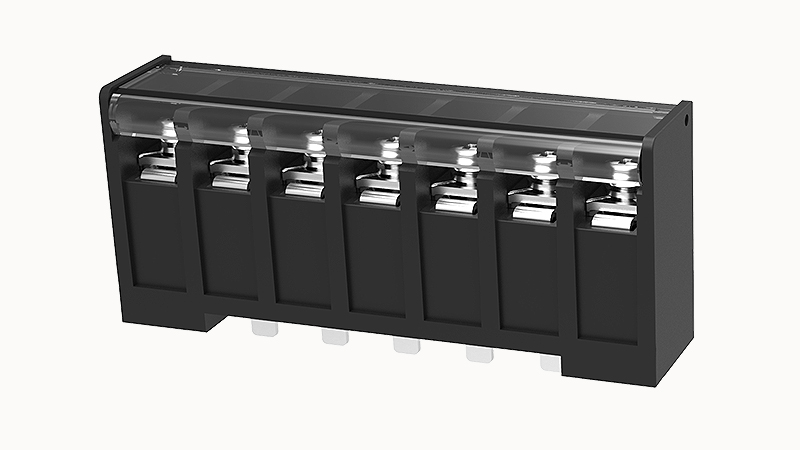

DG1450H-B-30A(H)-07P

Teknik Özellikler

Sıra Sayısı

1

Contact Materials

Copper alloy

Screw Thread

M5

Packing Unit

10

Flammability Rating

UL94V-0

Contact Point Metal Surface

tin-plated

Pitch

14.5mm

Process

Wave soldering/manual soldering

Awg

22~8AWG

Rated Current

Rated current;76A

Rated Voltage C

600V

Conductor Cross Section Flexible

0.5~10mm²

Number Of Potentials

7

Test Specification

UL1059

Conductor Cross Section Solid

0.5~10mm²

Rated Voltage D

600V

Rated Current C

40A

Rated Current B

40A

Insulation Materials

PBT

Ambient Temperature Operation

-40℃~125℃(depending on derating curve)

Rated Current D

5A

Connection Method

Screw connection

Rated Voltage B

600V

Type Of Installation

PCB welding

Environmental Items

Compliant with REACH/RoHS

Insulating Material Group

Ⅲa

Screwdriver

slotted-phillips screwdriver

Pluggable Or Not

no

Pin Arrangement

Single row in a straight line

Products Weight Without Packaging

150.8
