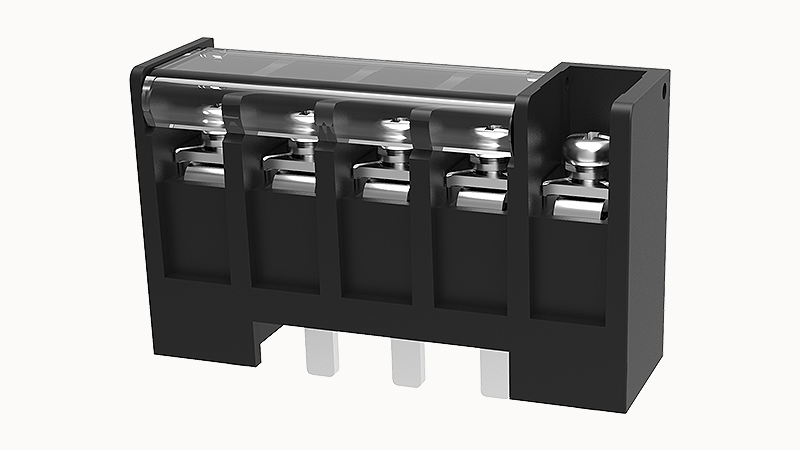

DG1450H-B-20A(H)-03P

Teknik Özellikler

Number Of Potentials

5

Rated Voltage C

600V

Conductor Cross Section Flexible

0.5~16mm²

Awg

22~6AWG

Rated Current

Rated current;57A

Process

Wave soldering/manual soldering

Pitch

14.5mm

Contact Point Metal Surface

tin-plated

Packing Unit

15

Flammability Rating

UL94V-0

Screw Thread

M5

Contact Materials

Copper alloy

Sıra Sayısı

1

Products Weight Without Packaging

103.7

Pin Arrangement

Single row in a straight line

Pluggable Or Not

no

Screwdriver

slotted-phillips screwdriver

Insulating Material Group

Ⅲa

Environmental Items

Compliant with REACH/RoHS

Rated Voltage B

600V

Type Of Installation

PCB welding

Ambient Temperature Operation

-40℃~125℃(depending on derating curve)

Insulation Materials

PBT

Rated Current D

5A

Connection Method

Screw connection

Rated Current C

57A

Rated Current B

57A

Rated Voltage D

600V

Conductor Cross Section Solid

0.5~16mm²

Test Specification

UL1059
