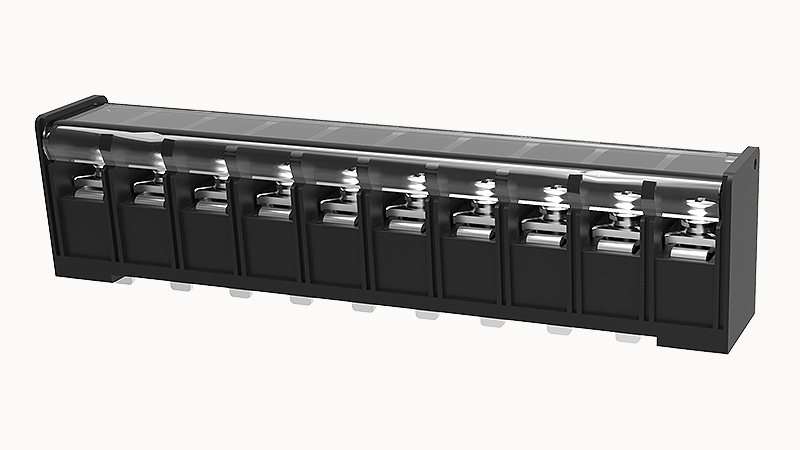

DG1450-B-10(H)-10P

Teknik Özellikler

Screw Thread

M5

Contact Materials

Copper alloy

Sıra Sayısı

1

Process

Wave soldering/manual soldering

Pitch

14.5mm

Awg

22~8AWG

Rated Voltage C

300V

Number Of Potentials

10

Packing Unit

5

Flammability Rating

UL94V-0

Contact Point Metal Surface

tin-plated

Rated Current B

50A

Rated Current C

50A

Rated Current D

10A

Connection Method

Screw connection

Ambient Temperature Operation

-40℃~125℃(depending on derating curve)

Insulation Materials

PBT

Type Of Installation

PCB welding

Rated Voltage B

300V

Test Specification

UL1059

Rated Voltage D

300V

Pluggable Or Not

no

Screwdriver

slotted-phillips screwdriver

Pin Arrangement

Single row in a straight line

Products Weight Without Packaging

160

Environmental Items

Compliant with REACH/RoHS

Insulating Material Group

Ⅲa
