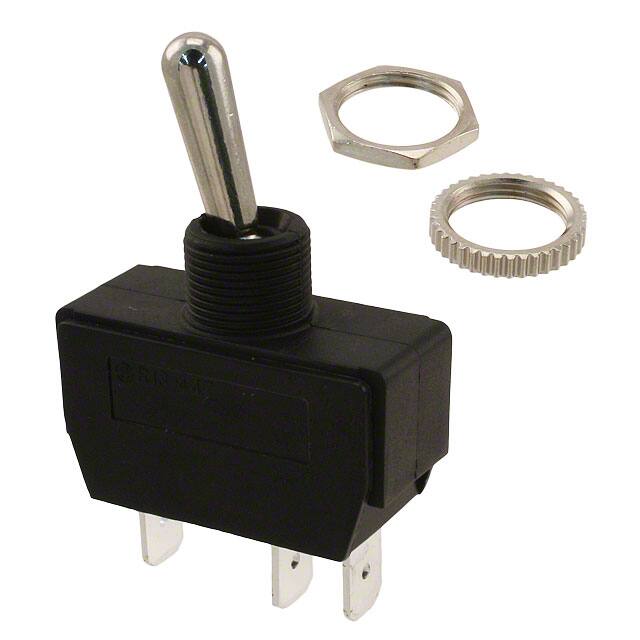

GTS447C101HR

Teknik Özellikler

Panel Cutout Dimensions

Circular - 12.20mm Dia

Length Termination

0.413 inch

Contact Currentacmax

20A

Parça Durumu

Active

Insulation Resistance

100000000Ohm

Voltage Rated Ac

250V

Montaj Tipi

Panel Mount

Bushing Length

0.358 inch

Body Length Or Diameter

35.1028mm

Switch Function

On-On

Circuit

SPDT

Contact Voltageacmax

277V

Actuator Type

Standard Round

Fabrika Tedarik Süresi

14 Weeks

Ratings

IP56, Water Resistant

Terminal Stili

Quick Connect - 0.250 (6.3mm)

Electricallife

10,000 Cycles

Actuator Length

17.50mm

Bushing Thread

15/32-32

Montaj

Panel

Terminal

Quick Connect

Illumination

Non-Illuminated

Body Height

18.4912mm

Dielectric Withstanding Voltage

1500VAC V

Switch Type

TOGGLE SWITCH

Çalışma Sıcaklığı

0°C~85°C

Current Rating Amps

20A AC

RoHS Durumu

ROHS3 Compliant

Akım Değeri

12A

Seri

GTS447

Ingress Protection

IP56 - Dust Protected, Water Resistant

Contact Resistance

0.05mOhm

Ambalaj

Bulk

Nem Hassasiyeti (MSL)

1 (Unlimited)

Body Breadth

15.9766 mm
