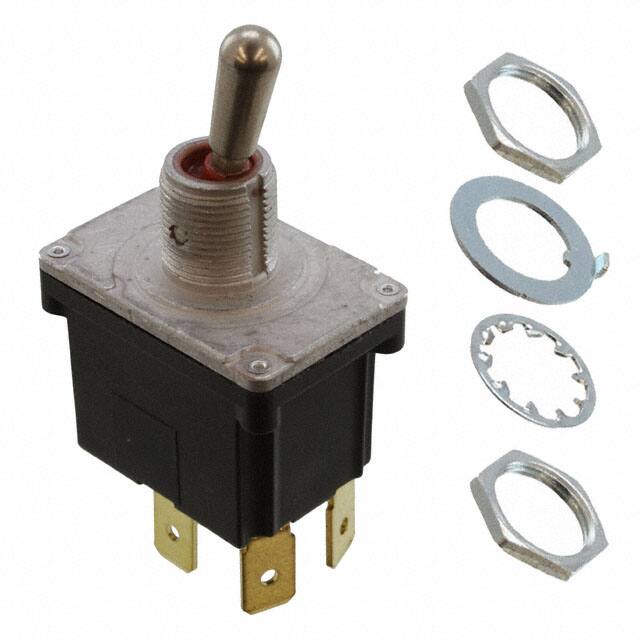

GTB-4B12

Teknik Özellikler

Ambalaj

Bulk

Switch Type

TOGGLE SWITCH

Switch Function

On-Off

Contact Ac Max Power Rating R Load

1HP@250VAC

Bushing Thread

15/32-32

Akım Değeri

12A

Seri

GTB

Body Breadth

22.4028 mm

Actuator Length

16.20mm

Fabrika Tedarik Süresi

14 Weeks

Circuit

DPST

Nem Hassasiyeti (MSL)

1 (Unlimited)

Contact Function

OFF-ON

Yayın Yılı

2012

Body Height

24.9936mm

Contact Resistance

0.02mOhm

RoHS Durumu

ROHS3 Compliant

Body Length Or Diameter

33.5026mm

Actuator Type

Standard Round

Terminal

Quick Connect

Actuator Material

Brass, Nickel Plated

Contact Ac Max Rating R Load

12A@250VAC

Dielectric Withstanding Voltage

1500VAC V

Life Cycles

30000 cycles

Illumination

Non-Illuminated

Length Termination

0.425 inch

Current Rating Amps

12A AC

Parça Durumu

Active

Montaj Tipi

Panel Mount

Ingress Protection

IP68 - Dust Tight, Waterproof

Insulation Resistance

100000000Ohm

Ratings

Dust Tight, IP68, Waterproof

Contact Voltageacmax

250V

Panel Cutout Dimensions

Circular - 12.00mm Dia

Voltage Rated Dc

500V

Terminal Stili

Quick Connect - 0.250 (6.3mm)

Voltage Rated Ac

125V

Bushing Length

0.48 inch

Montaj

Bushing, Panel

Electricallife

30,000 Cycles
