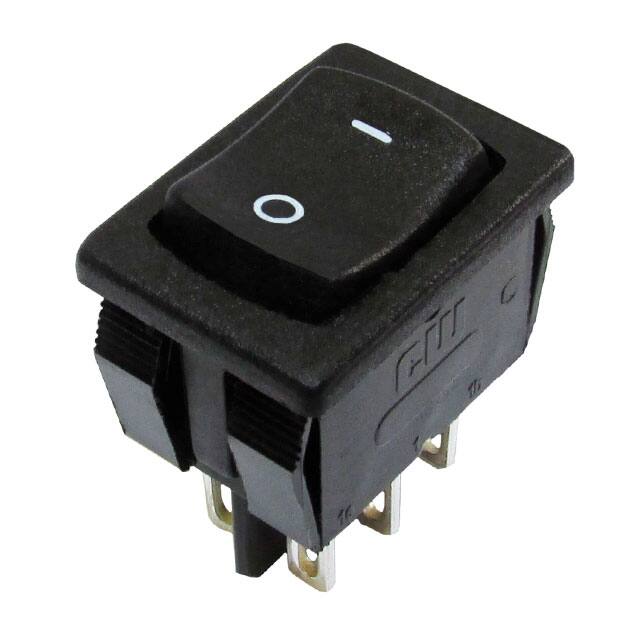

GRS-4023C-0007

Teknik Özellikler

Body Length Or Diameter

18.923mm

Terminal Stili

Quick Connect - 0.110 (2.8mm)

Contact Function

(ON)-OFF-(ON)

Center Contact Material

COPPER ALLOY

Akım Değeri

13A

Dielectric Withstanding Voltage

2500VAC V

Terminal Material

COPPER ALLOY

Switch Type

ROCKER SWITCH

Voltage Rated Ac

125V

Contact Resistance

0.01mOhm

Circuit

DPDT

Actuator Marking

O I

Body Height

11.684mm

Özellikler

Terminal Barriers

Color Actuatorcap

Black

Length Termination

0.34 inch

Center Contact Plating

SILVER

Housing Material

NYLON

Current Rating Amps

13A AC

Seri

4000

Terminal

Quick Connect

Çalışma Sıcaklığı

-20°C~105°C

Mechanical Life

25,000 Cycles

Actuator Material

NYLON

Ambalaj

Bulk

Actuator Length

0.17 inch

Actuator Type

Concave (Curved)

Montaj

Panel, Snap in

Montaj Tipi

Panel Mount, Snap-In

Fabrika Tedarik Süresi

12 Weeks

Body Breadth

12.7 mm

Nem Hassasiyeti (MSL)

1 (Unlimited)

Contact Voltageacmax

250V

Electricallife

25,000 Cycles

Contact Ac Max Rating R Load

10A@250VAC

Contact Ac Max Power Rating R Load

0.5HP@250VAC

Switch Function

Mom-Off-Mom

Panel Cutout Dimensions

Rectangular - 19.20mm x 12.90mm

Contact Currentacmax

10A

Parça Durumu

Active
