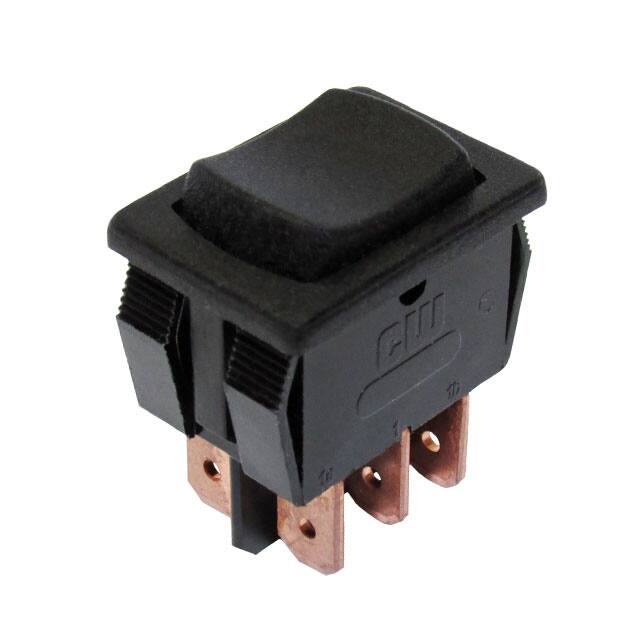

GRS-4023C-0001

Teknik Özellikler

Akım Değeri

8A

Dielectric Withstanding Voltage

2500VAC V

Terminal Material

COPPER ALLOY

Contact Function

(ON)-OFF-(ON)

Center Contact Material

COPPER ALLOY

Terminal Stili

Quick Connect - 0.187 (4.7mm)

Switch Type

ROCKER SWITCH

Voltage Rated Ac

125V

Body Length Or Diameter

18.923mm

Özellikler

Terminal Barriers

Body Height

11.684mm

Center Contact Plating

SILVER

Length Termination

0.34 inch

Color Actuatorcap

Black

Contact Resistance

0.01mOhm

Circuit

DPDT

Actuator Marking

No Marking

Montaj

Panel, Snap in

Actuator Type

Concave (Curved)

Actuator Length

0.17 inch

Body Breadth

12.7 mm

Fabrika Tedarik Süresi

12 Weeks

Montaj Tipi

Panel Mount, Snap-In

Seri

4000

Current Rating Amps

8A AC

Terminal

Quick Connect

Housing Material

NYLON

Ambalaj

Bulk

Actuator Material

NYLON

Mechanical Life

25,000 Cycles

Çalışma Sıcaklığı

-20°C~105°C

Panel Cutout Dimensions

Rectangular - 19.20mm x 12.90mm

RoHS Durumu

ROHS3 Compliant

Parça Durumu

Active

Contact Currentacmax

4A

Electricallife

25,000 Cycles

Contact Voltageacmax

250V

Nem Hassasiyeti (MSL)

1 (Unlimited)

Switch Function

Mom-Off-Mom

Contact Ac Max Rating R Load

4A@250VAC
