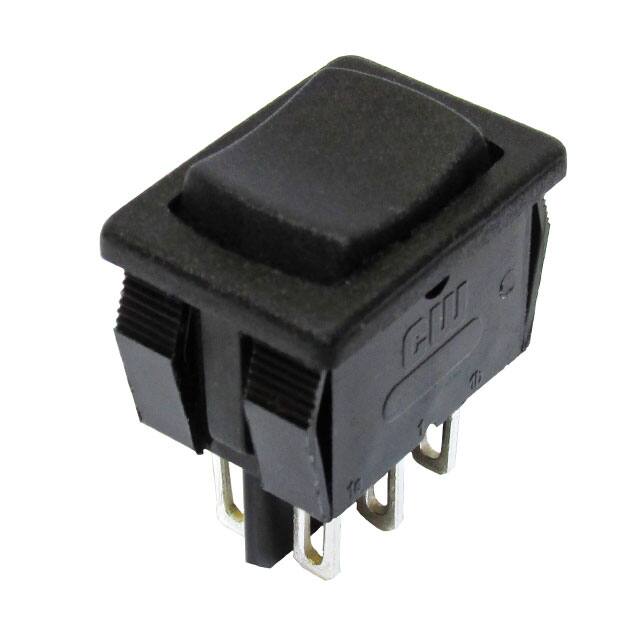

GRS-4023A-0012

Teknik Özellikler

Panel Cutout Dimensions

Rectangular - 19.20mm x 12.90mm

Contact Currentacmax

10A

RoHS Durumu

ROHS3 Compliant

Parça Durumu

Active

Contact Voltageacmax

250V

Nem Hassasiyeti (MSL)

1 (Unlimited)

Electricallife

25,000 Cycles

Contact Ac Max Rating R Load

10A@250VAC

Contact Ac Max Power Rating R Load

0.5HP@250VAC

Switch Function

On-Off-On

Actuator Length

0.17 inch

Montaj

Panel, Snap in

Actuator Type

Concave (Curved)

Montaj Tipi

Panel Mount, Snap-In

Body Breadth

12.7 mm

Housing Material

NYLON

Terminal

Quick Connect

Current Rating Amps

13A AC

Seri

4000

Çalışma Sıcaklığı

-20°C~105°C

Ambalaj

Bulk

Actuator Material

NYLON

Mechanical Life

25,000 Cycles

Body Height

11.684mm

Özellikler

Terminal Barriers

Color Actuatorcap

Black

Center Contact Plating

SILVER

Length Termination

0.34 inch

Contact Resistance

0.01mOhm

Actuator Marking

No Marking

Circuit

DPDT

Center Contact Material

COPPER ALLOY

Terminal Stili

Quick Connect - 0.110 (2.8mm)

Dielectric Withstanding Voltage

2500VAC V

Terminal Material

COPPER ALLOY

Akım Değeri

13A

Switch Type

ROCKER SWITCH

Voltage Rated Ac

125V

Body Length Or Diameter

18.923mm
