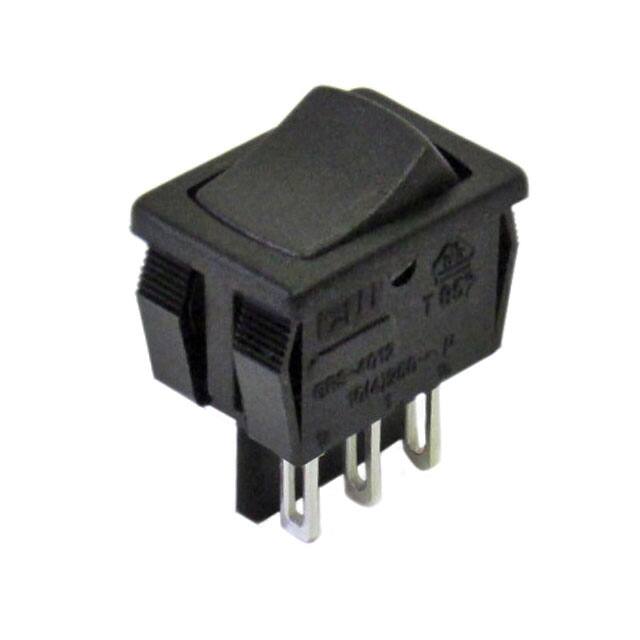

GRS-4012A-0007

Teknik Özellikler

Panel Cutout Dimensions

Rectangular - 19.20mm x 12.90mm

Contact Currentacmax

10A

Parça Durumu

Active

RoHS Durumu

ROHS3 Compliant

Nem Hassasiyeti (MSL)

1 (Unlimited)

Contact Voltageacmax

250V

Electricallife

25,000 Cycles

Contact Ac Max Power Rating R Load

0.5HP@250VAC

Contact Ac Max Rating R Load

10A@250VAC

Switch Function

On-Mom

Actuator Length

0.23 inch

Actuator Type

Concave (Curved)

Montaj

Panel, Snap in

Montaj Tipi

Panel Mount, Snap-In

Fabrika Tedarik Süresi

12 Weeks

Body Breadth

12.7 mm

Housing Material

NYLON

Terminal

Quick Connect

Current Rating Amps

13A AC

Seri

4000

Çalışma Sıcaklığı

-20°C~105°C

Mechanical Life

25,000 Cycles

Ambalaj

Bulk

Actuator Material

NYLON

Body Height

11.684mm

Özellikler

Terminal Barriers

Color Actuatorcap

Black

Length Termination

0.34 inch

Center Contact Plating

SILVER

Actuator Angle

36 deg

Contact Resistance

0.01mOhm

Actuator Marking

No Marking

Circuit

SPDT

Insulation Resistance

1000000000Ohm

Terminal Stili

Quick Connect - 0.110 (2.8mm)

Center Contact Material

COPPER ALLOY

Contact Function

ON-(ON)

Terminal Material

COPPER ALLOY

Dielectric Withstanding Voltage

2500VAC V

Akım Değeri

13A
