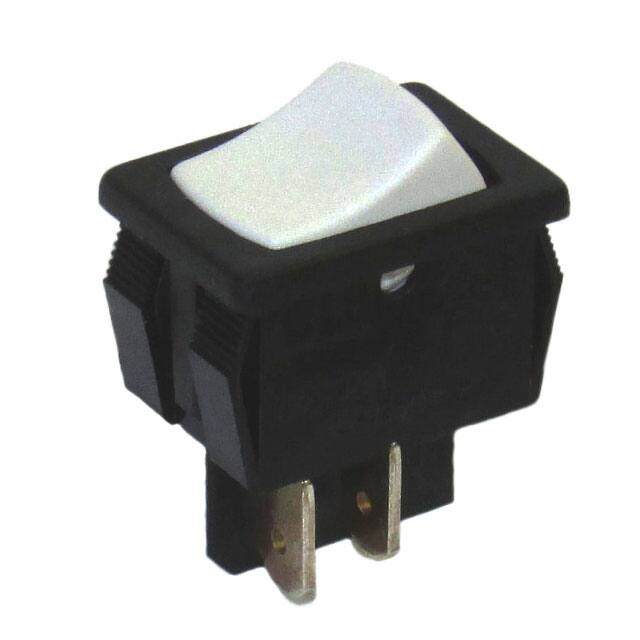

GRS-4011-0011

Teknik Özellikler

Actuator Length

0.23 inch

Body Length Or Diameter

18.923mm

Actuator Type

Concave (Curved)

Body Breadth

12.7 mm

Actuator Material

NYLON

Terminal Stili

Quick Connect - 0.187 (4.7mm)

Contact Voltageacmax

250V

Nem Hassasiyeti (MSL)

1 (Unlimited)

Mechanical Life

25,000 Cycles

Circuit

SPST

Voltage Rated Ac

125V

Switch Type

ROCKER SWITCH

Current Rating Amps

16A AC

RoHS Durumu

ROHS3 Compliant

Center Contact Material

COPPER ALLOY

Actuator Marking

No Marking

Body Color

BLACK

Terminal Material

COPPER ALLOY

Housing Material

NYLON

Switch Function

On-Off

Özellikler

Terminal Barriers

Length Termination

0.34 inch

Panel Cutout Dimensions

Rectangular - 19.20mm x 12.90mm

Body Height

11.684mm

Montaj

Panel, Snap in

Çalışma Sıcaklığı

-20°C~105°C

Parça Durumu

Active

Ambalaj

Bulk

Insulation Resistance

1000000000Ohm

Contact Ac Max Power Rating R Load

0.75HP@250VAC

Montaj Tipi

Panel Mount, Snap-In

Contact Resistance

0.01mOhm

Contact Ac Max Rating R Load

16A@250VAC

Electricallife

25,000 Cycles

Color Actuatorcap

White

Seri

4000

Center Contact Plating

SILVER

Dielectric Withstanding Voltage

2500VAC V

Terminal

Quick Connect

Akım Değeri

16A
