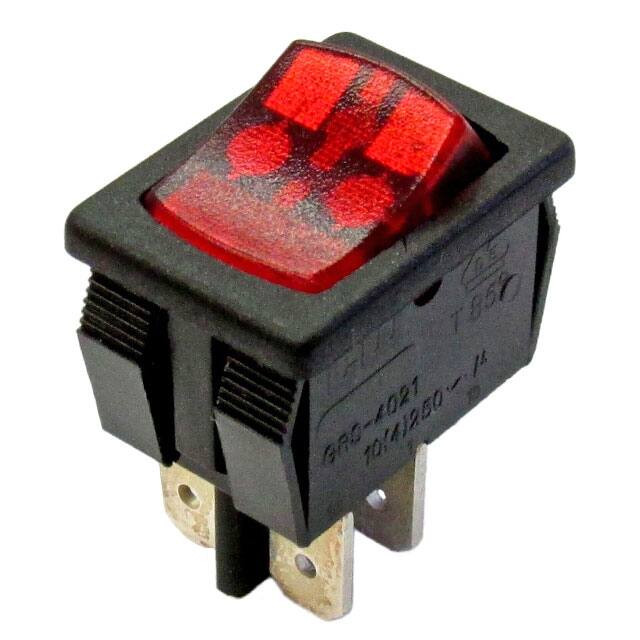

GRL-4021-0007

Teknik Özellikler

Contact Ac Max Power Rating R Load

0.75HP@250VAC

Body Color

BLACK

Actuator Length

0.23 inch

Actuator Type

Concave (Curved) - Illuminated

Switch Function

On-Off

Current Rating Amps

16A AC

Terminal

Quick Connect

Montaj Tipi

Panel Mount, Snap-In

Çalışma Sıcaklığı

-20°C~105°C

Nem Hassasiyeti (MSL)

1 (Unlimited)

Circuit

DPST

Switch Type

ROCKER SWITCH

Illumination Voltage Nominal

125VAC

Terminal Material

COPPER ALLOY

Terminal Stili

Quick Connect - 0.187 (4.7mm)

Illumination Type Color

Neon, Red

Body Breadth

12.7 mm

Kılıf / Paket

125

Contact Voltageacmax

250V

Voltage Rated Ac

125V

Center Contact Material

COPPER ALLOY

Insulation Resistance

1000000000Ohm

Montaj

Panel, Snap in

Center Contact Plating

SILVER

Housing Material

NYLON

Contact Ac Max Rating R Load

16A@250VAC

Electricallife

25,000 Cycles

Fabrika Tedarik Süresi

12 Weeks

Özellikler

Terminal Barriers

Actuator Marking

No Marking

Illumination Type

Neon

Dielectric Withstanding Voltage

2500VAC V

Parça Durumu

Active

Panel Cutout Dimensions

Rectangular - 19.20mm x 12.90mm

Length Termination

0.34 inch

Contact Resistance

0.01mOhm

RoHS Durumu

ROHS3 Compliant

Akım Değeri

16A

Mechanical Life

25,000 Cycles

Body Length Or Diameter

18.923mm
