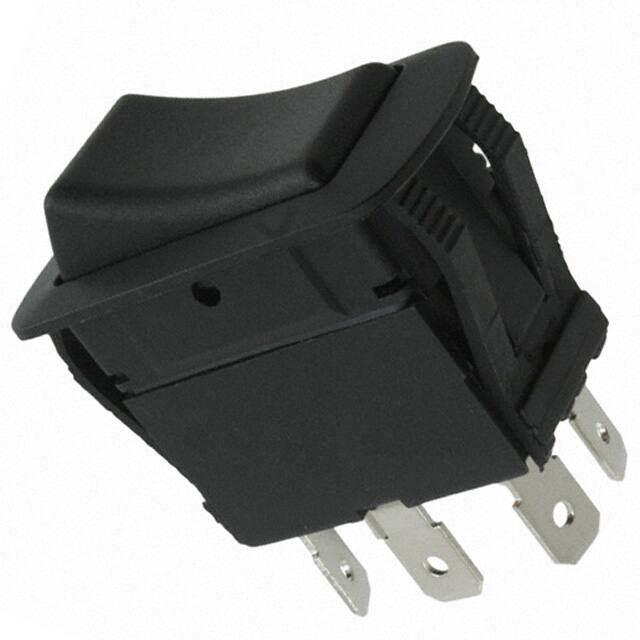

GRB260B601BBNN

Teknik Özellikler

Switch Function

On-On

Actuator Length

0.406 inch

Actuator Type

Concave (Curved)

Contact Ac Max Power Rating R Load

0.75HP@277VAC

Ratings

IP56, Water Resistant

Nem Hassasiyeti (MSL)

1 (Unlimited)

Çalışma Sıcaklığı

-20°C~85°C

Montaj Tipi

Panel Mount, Snap-In

Current Rating Amps

20A AC 21A DC

Actuator Material

GLASS FILLED NYLON

Terminal

Quick Connect

Terminal Material

COPPER ALLOY

Switch Type

ROCKER SWITCH

Circuit

DPDT

Terminal Stili

Quick Connect - 0.250 (6.3mm)

Contact Voltageacmax

250V

Contact Currentacmax

10A

Voltage Rated Ac

125V

Voltage Rated Dc

14V

Body Breadth

21.0058 mm

Housing Material

NYLON

Contact Ac Max Rating R Load

10A@250VAC

Insulation Resistance

100000000Ohm

Montaj

Panel, Snap in

Dielectric Withstanding Voltage

1500VAC V

Actuator Marking

No Marking

Fabrika Tedarik Süresi

14 Weeks

Illumination Type

Illuminated

Akım Değeri

21A

RoHS Durumu

ROHS3 Compliant

Yayın Yılı

2010

Mechanical Life

100,000 Cycles

Length Termination

0.441 inch

Panel Cutout Dimensions

Rectangular - 36.60mm x 21.20mm

Parça Durumu

Active

Contact Resistance

0.05mOhm

Ambalaj

Bulk

Seri

GRB

Ingress Protection

IP56 - Dust Protected, Water Resistant

Body Height

28.0924mm
