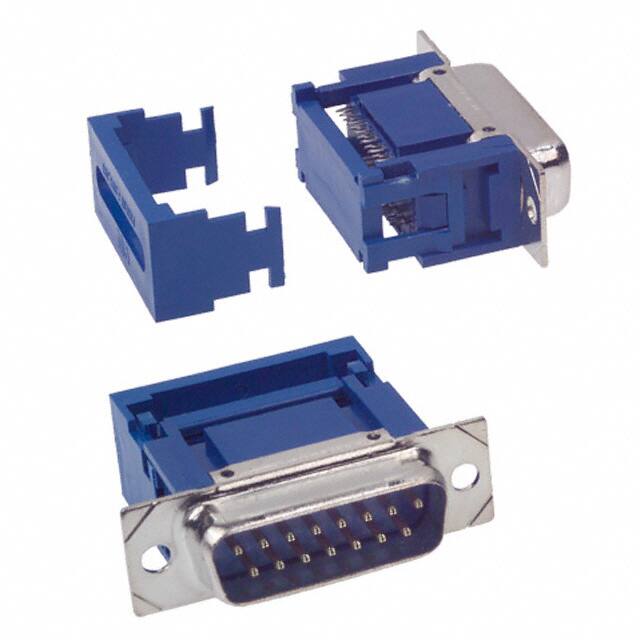

CWR-280-15-0003

Teknik Özellikler

Contact Materials

Phosphor Bronze

Montaj

Free Hanging

RoHS Durumu

Non-RoHS Compliant

Contact Type

Signal

Body Depth

0.8 inch

Gender

Male

Mil Conformance

YES

Ambalaj

Bulk

Seri

CWR

Mating Contact Pitch

0.108 inch

Shell Size Connector Layout

2 DA A

Total Number Of Contacts

15

Plating Thickness

100μin

Genişlik

12.5mm

Flammability Rating

UL94 V-0

Contact Finish Thickness

100.0μin 2.54μm

Flange Feature

Housing/Shell (Unthreaded)

Contact Finish

Tin

Yayın Yılı

2002

Pozisyon Sayısı

15

Nem Hassasiyeti (MSL)

1 (Unlimited)

Contact Design

PREASSEM CONN

Özellikler

Feed Through, Shielded, Strain Relief

Connector Style

D-Sub

Renk

Blue

Additional Feature

DAISY CHAIN CONNECTOR

Wire Gauge

28-30 AWG

Maks. Çalışma Sıcaklığı

125°C

Reliability

MIL-C-83503

Kurşunsuz

Contains Lead

Terminal

IDC, Ribbon Cable

Min. Çalışma Sıcaklığı

-55°C

Material Flammability Rating

UL94 V-0

Body Breadth

0.53 inch

Parça Durumu

Active

Yükseklik

26mm

Akım Değeri

1A

Mating Contact Row Spacing

0.11 inch

Sıra Sayısı

2

Shell Finish

TIN
