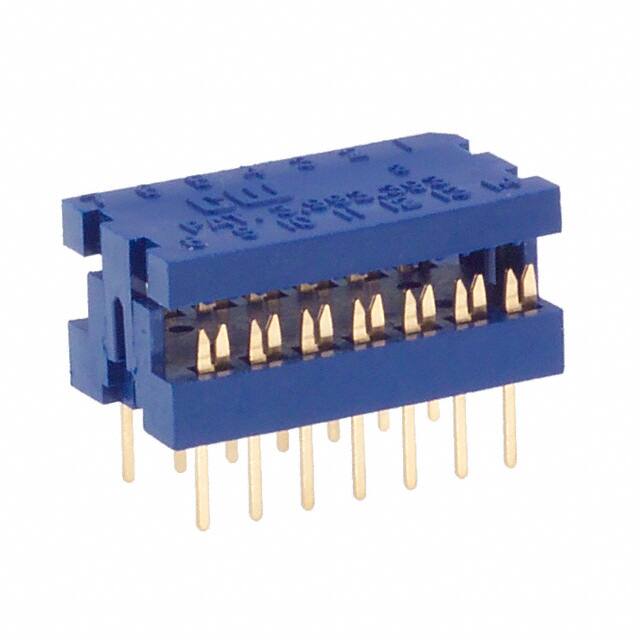

CWR-130-14-0000

Teknik Özellikler

Kurşunsuz Kodu

yes

Pitch

2.54mm

Contact Gender

MALE

Yayın Yılı

2002

Housing Material

Thermoplastic

Plating Thickness

10μin

Total Number Of Contacts

14

Contact Finish

Gold

Wire Gauge Max

30 AWG

Contact Finish Thickness

10.0μin 0.25μm

Genişlik

10.7mm

Rated Current Signal

1A

Number Of Pcb Rows

2

Body Depth

0.34 inch

RoHS Durumu

ROHS3 Compliant

Montaj

Through Hole

Dielectric Withstanding Voltage

500VDC V

Contact Materials

Bronze

Ambalaj

Bulk

Seri

CWR

Polarization Key

POLARIZED HOUSING

Cable Pitch

0.050 1.27mm

Uzunluk

19.2mm

Number Of Conductors

ONE

Connector Type

Ribbon Cable, DIP Header

Fabrika Tedarik Süresi

10 Weeks

Number Of Positions Loaded

All

Reference Standard

UL

Montaj Tipi

Through Hole

Yükseklik

6.3mm

Parça Durumu

Active

Row Spacing

0.300 (7.62mm)

Cable Termination

IDC

Sıra Sayısı

2

Boardside Pitch

0.100 2.54mm

Wire Gauge Min

28 AWG

Wire Gauge

28-30 AWG, Stranded or Solid

Contact Pattern

RECTANGULAR

Terminal

Through Hole

Kurşunsuz

Lead Free
