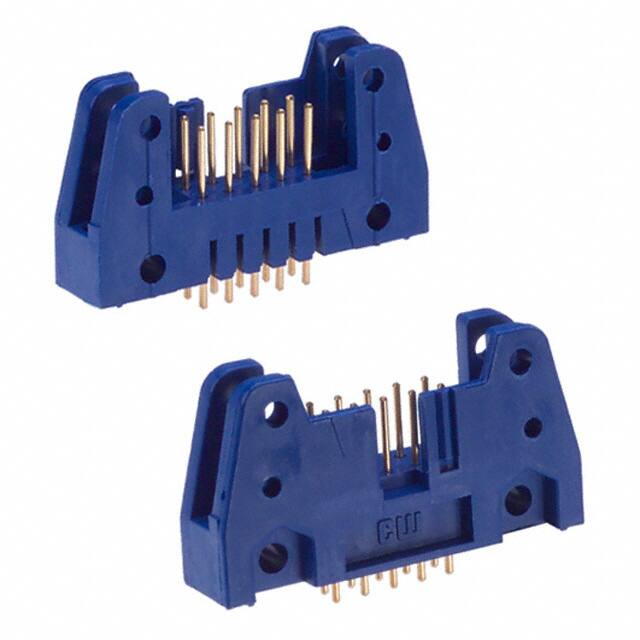

CWN-350-10-0000

Teknik Özellikler

Polarization Key

MIL TYP & CENTER

Mil Conformance

YES

Ambalaj

Bulk

RoHS Durumu

ROHS3 Compliant

Style

Board to Cable/Wire

Contact Materials

Phosphor Bronze

Gender

Male

Mating Contact Pitch

0.1 inch

Number Of Pcb Rows

2

Shrouding

Shrouded - 4 Wall

Contact Finish Thickness Post

50.0μin 1.27μm

Yayın Yılı

2002

Özellikler

Keying Slot, Mounting Flange

Contact Finish Post

Nickel

Pozisyon Sayısı

10

Nem Hassasiyeti (MSL)

1 (Unlimited)

Kurşunsuz

Lead Free

Contact Lengthmating

0.240 6.10mm

Reliability

MIL-C-83503

Contact Finish Thickness Mating

10.0μin 0.25μm

Terminal

Solder

Çalışma Sıcaklığı

-55°C~125°C

Sıra Sayısı

2

Material Flammability Rating

UL94 V-0

Montaj Tipi

Through Hole

Fabrika Tedarik Süresi

10 Weeks

Number Of Conductors

ONE

Uzunluk

32mm

Seri

CWN

Montaj

Through Hole

Insulation Resistance

5000000000Ohm

Dielectric Withstanding Voltage

500VDC V

Contact Length Post

0.090 2.29mm

ECCN Kodu

EAR99

Body Depth

0.68 inch

Contact Type

Male Pin

Contact Shape

Circular

Insulation Height

0.681 17.30mm

HTS Kodu

8536.69.40.40

Genişlik

7.62mm
