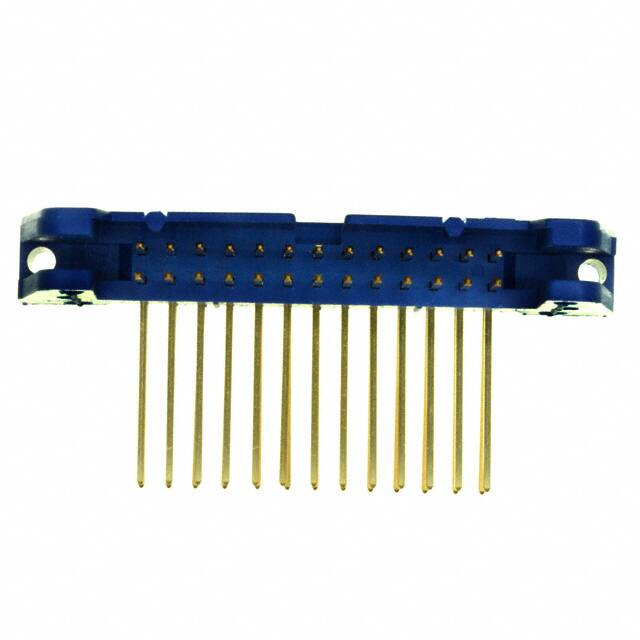

CWN-320-26-0000

Teknik Özellikler

Mating Contact Pitch

0.1 inch

Number Of Pcb Rows

2

Shrouding

Shrouded - 4 Wall

Mil Conformance

YES

Polarization Key

MIL TYP & CENTER

Ambalaj

Bulk

Contact Materials

Phosphor Bronze

RoHS Durumu

ROHS3 Compliant

Style

Board to Cable/Wire

Gender

Male

Yayın Yılı

2002

Contact Finish Thickness Post

50.0μin 1.27μm

Contact Lengthmating

0.240 6.10mm

Reliability

MIL-C-83503

Kurşunsuz

Lead Free

Terminal

Wire Wrap

Contact Finish Thickness Mating

10.0μin 0.25μm

Çalışma Sıcaklığı

-55°C~125°C

Özellikler

Keying Slot, Mounting Flange

Pozisyon Sayısı

26

Contact Finish Post

Nickel

Nem Hassasiyeti (MSL)

1 (Unlimited)

Montaj Tipi

Through Hole, Right Angle

Fabrika Tedarik Süresi

10 Weeks

Number Of Conductors

ONE

Sıra Sayısı

2

Material Flammability Rating

UL94 V-0

HTS Kodu

8536.69.40.40

Insulation Height

0.291 7.40mm

Contact Shape

Circular

Seri

CWN

Insulation Resistance

5000000000Ohm

ECCN Kodu

EAR99

Contact Length Post

0.610 15.49mm

Dielectric Withstanding Voltage

500VDC V

Montaj

Through Hole

Contact Type

Male Pin

Kurşunsuz Kodu

yes

Genişlik

17.3mm

Row Spacing Mating

0.100 (2.54mm)
