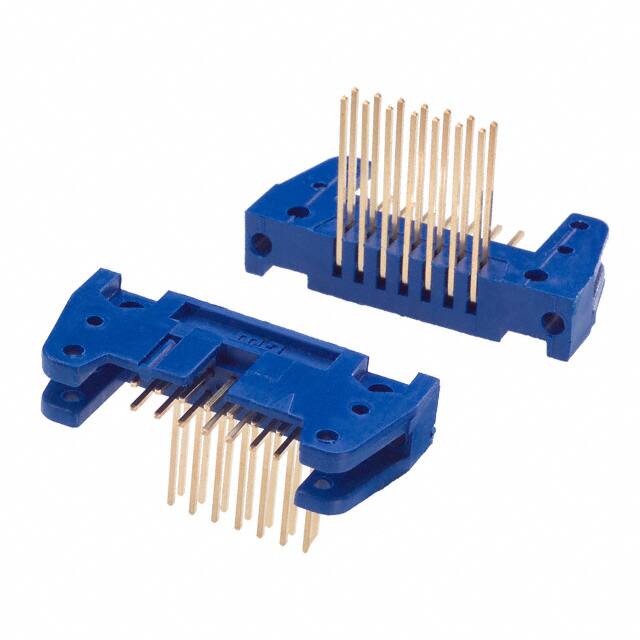

CWN-320-14-0000

Teknik Özellikler

Yayın Yılı

2002

Contact Finish Thickness Post

50.0μin 1.27μm

Number Of Pcb Rows

2

Mating Contact Pitch

0.1 inch

Shrouding

Shrouded - 4 Wall

Ambalaj

Bulk

Polarization Key

MIL TYP & CENTER

Mil Conformance

YES

Gender

Male

Style

Board to Cable/Wire

RoHS Durumu

ROHS3 Compliant

Contact Materials

Phosphor Bronze

Fabrika Tedarik Süresi

10 Weeks

Montaj Tipi

Through Hole, Right Angle

Number Of Conductors

ONE

Sıra Sayısı

2

Material Flammability Rating

UL94 V-0

Contact Finish Thickness Mating

10.0μin 0.25μm

Terminal

Wire Wrap

Kurşunsuz

Lead Free

Contact Lengthmating

0.240 6.10mm

Reliability

MIL-C-83503

Çalışma Sıcaklığı

-55°C~125°C

Özellikler

Keying Slot, Mounting Flange

Nem Hassasiyeti (MSL)

1 (Unlimited)

Contact Finish Post

Nickel

Pozisyon Sayısı

14

Genişlik

17.3mm

Plating Thickness

10μin

Housing Material

Plastic

Row Spacing Mating

0.100 (2.54mm)

Contact Shape

Circular

Insulation Height

0.291 7.40mm

HTS Kodu

8536.69.40.40

Seri

CWN

Contact Type

Male Pin

Montaj

Through Hole

ECCN Kodu

EAR99

Contact Length Post

0.610 15.49mm

Dielectric Withstanding Voltage

500VDC V
