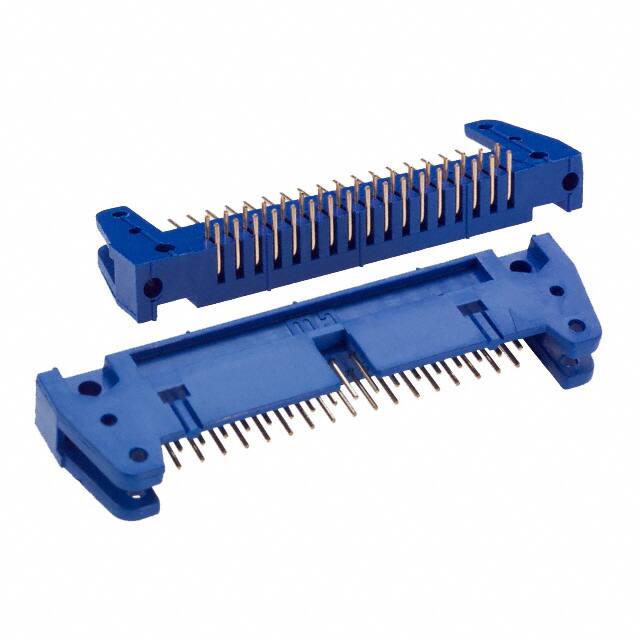

CWN-300-34-0000

Teknik Özellikler

Number Of Conductors

ONE

Uzunluk

62.5mm

Montaj Tipi

Through Hole, Right Angle

Fabrika Tedarik Süresi

10 Weeks

Material Flammability Rating

UL94 V-0

Sıra Sayısı

2

Çalışma Sıcaklığı

-55°C~125°C

Contact Lengthmating

0.240 6.10mm

Reliability

MIL-C-83503

Kurşunsuz

Lead Free

Terminal

Solder

Contact Finish Thickness Mating

10.0μin 0.25μm

Pozisyon Sayısı

34

Contact Finish Post

Nickel

Nem Hassasiyeti (MSL)

1 (Unlimited)

Özellikler

Keying Slot, Mounting Flange

Yayın Yılı

2002

Contact Finish Thickness Post

50.0μin 1.27μm

Shrouding

Shrouded - 4 Wall

Mating Contact Pitch

0.1 inch

Number Of Pcb Rows

2

Contact Materials

Phosphor Bronze

RoHS Durumu

ROHS3 Compliant

Style

Board to Cable/Wire

Gender

Male

Mil Conformance

YES

Polarization Key

MIL TYP & CENTER

Ambalaj

Bulk

Fastening Type

Push-Pull

Housing Color

Blue

Reference Standard

UL, CSA

Contact Finish Mating

Gold

Number Of Positions Loaded

All

Connector Type

Header

Parça Durumu

Active

Yükseklik

7.62mm

Pitch Mating

0.100 2.54mm

Additional Feature

INSERTABLE POLARIZATION

Contact Resistance

15mOhm

Pcb Contact Pattern

RECTANGULAR
