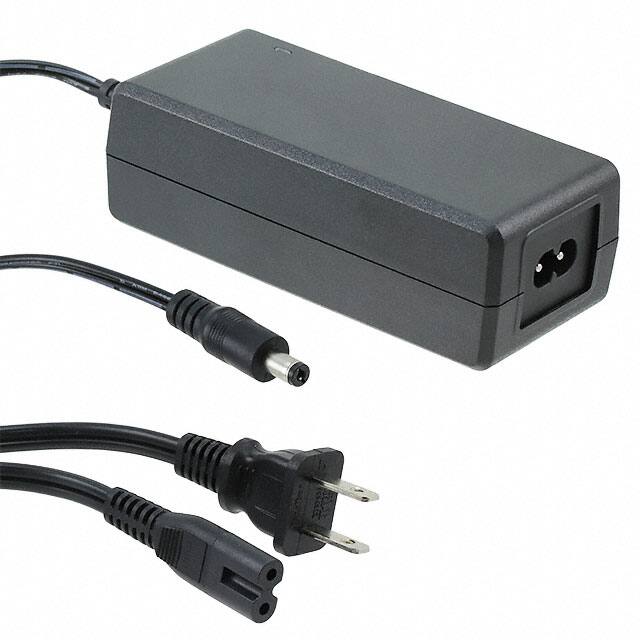

SDI50-24-UDC-P5

Teknik Özellikler

Number Of Outputs

1

Fabrika Tedarik Süresi

20 Weeks

Product Height Mm

38(mm)

Output Connector

Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm

Output Connector Polarity

Center Positive

Onay Kuruluşu

CE, cULus, GS, PSE

Connector Type

Plug

Output Power

50(W)

Product Length Mm

115(mm)

Polarization

Positive Center

Product Depth Mm

53(mm)

Power Indicator

Yes

Inrush Current

70@230VAC(A)

Kullanım Bölgesi

North America

Çıkış Tipi

Fixed

Nem Hassasiyeti (MSL)

Not Applicable

Output Voltage

24(V)

Weight

0.684lb 310.26g

Seri

SDI50-UD (50W)

Form

Desktop (Class II)

Input Voltage

90 to 264(V)

Input Connector Type

NORTH AMERICA

Boyut / Ölçü

4.53Lx2.09W x 1.50 H 115.0mmx53.0mmx38.0mm

Max Output Current

2.1A

Output Current

2.1(A)

No Load Power Consumption

150mW Max

Polarity

Positive

Yükseklik

38.1mm

Usage Level

Commercial grade

Max Power Dissipation

50W

Adapter Color

Black

Style

Desktop Adapter

Applications

ITE (Commercial)

Screening Level

Commercial

Montaj Stili

Desktop

Operating Temp Range

0C to 40C

Çıkış Gerilimi

24V

Tip

Regulated

Ripple Noise

240MV(MAX)(%)

Yayın Yılı

2016
