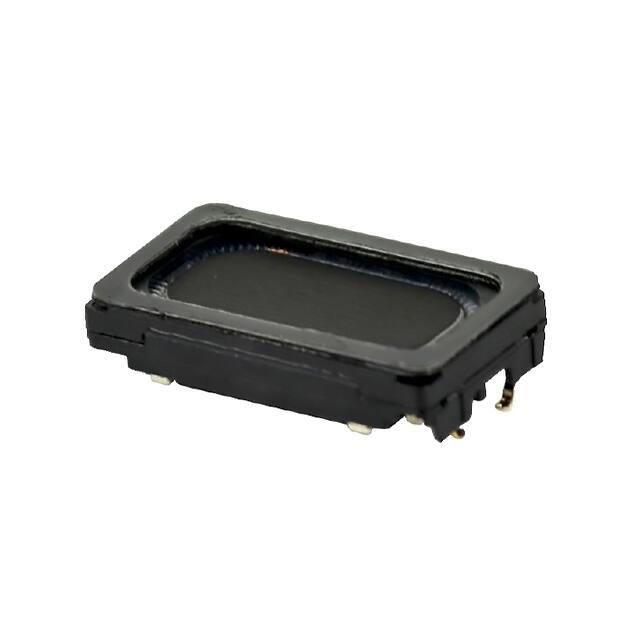

CMS-160918-30-SP

Teknik Özellikler

Tip

General Purpose

Terminal

Solder Pads

Empedans

8Ohms

Efficiency Dba

87.50

Shape

Rectangular

Material Magnet

Nd-Fe-B

Frequency Range

400Hz~20kHz

Yayın Yılı

2016

Frequencyselfresonant

500Hz

Nem Hassasiyeti (MSL)

Not Applicable

Power Max

1W

Material Cone

Polyester, Polyethylene Terephthalate (PET)

RoHS Durumu

Non-RoHS Compliant

Port Location

Top

Efficiency Testing

700mW/100mm

Maks. Oturma Yüksekliği

0.138 3.50mm

Ambalaj

Tray

Parça Durumu

Obsolete

Seri

CMS

Boyut / Ölçü

0.630Lx0.354W 16.00mmx9.00mm

Fabrika Tedarik Süresi

11 Weeks

Efficiency Type

Sound Pressure Level (SPL)

Power Rated

700mW

Technology

Magnetic
