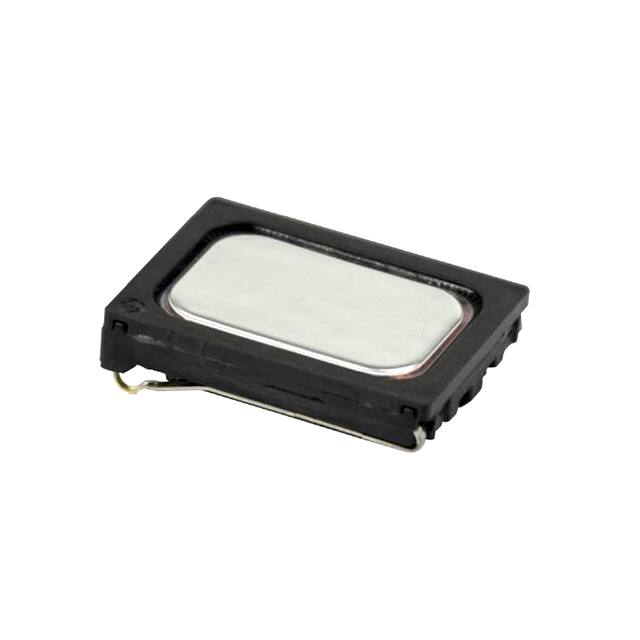

CMS-15118-30-SP

Teknik Özellikler

Nem Hassasiyeti (MSL)

Not Applicable

Material Cone

Polyester, Polyethylene Terephthalate (PET)

Power Max

1W

Maks. Oturma Yüksekliği

0.130 3.30mm

Efficiency Testing

700mW/100mm

RoHS Durumu

Non-RoHS Compliant

Port Location

Top

Seri

CMS

Boyut / Ölçü

0.591Lx0.433W 15.00mmx11.00mm

Ambalaj

Tray

Parça Durumu

Obsolete

Fabrika Tedarik Süresi

11 Weeks

Power Rated

700mW

Efficiency Type

Sound Pressure Level (SPL)

Empedans

8Ohms

Terminal

Solder Pads

Tip

General Purpose

Frequency Range

400Hz~20kHz

Material Magnet

Nd-Fe-B

Efficiency Dba

90.00

Shape

Rectangular

Yayın Yılı

2017

Frequencyselfresonant

500Hz
