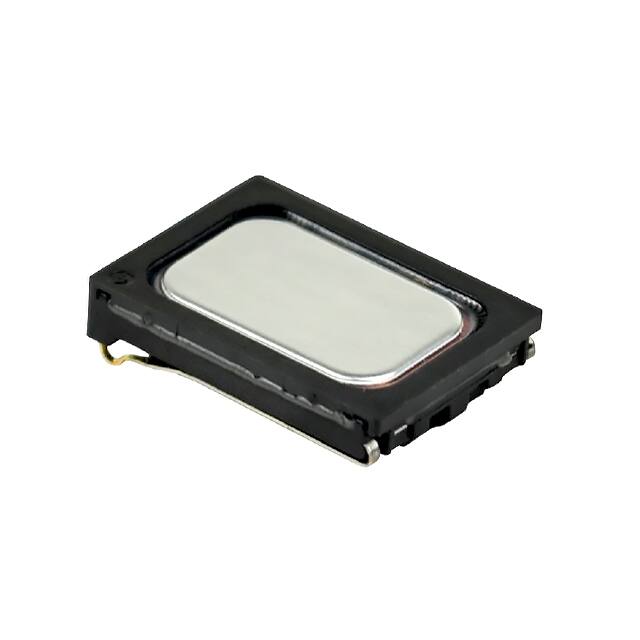

CMS-15116-30-SP

Teknik Özellikler

Boyut / Ölçü

0.591Lx0.433W 15.00mmx11.00mm

Seri

CMS

Parça Durumu

Obsolete

Ambalaj

Tray

Fabrika Tedarik Süresi

17 Weeks

Efficiency Type

Sound Pressure Level (SPL)

Power Rated

940mW

Nem Hassasiyeti (MSL)

Not Applicable

Material Cone

Polyester, Polyethylene Terephthalate (PET)

Power Max

1.3W

Maks. Oturma Yüksekliği

0.130 3.30mm

Efficiency Testing

940mW/100mm

RoHS Durumu

Non-RoHS Compliant

Port Location

Top

Frequencyselfresonant

500Hz

Empedans

6Ohm

Terminal

Solder Pads

Tip

General Purpose

Frequency Range

400Hz~20kHz

Material Magnet

Nd-Fe-B

Shape

Rectangular

Efficiency Dba

94.00

Yayın Yılı

2016
