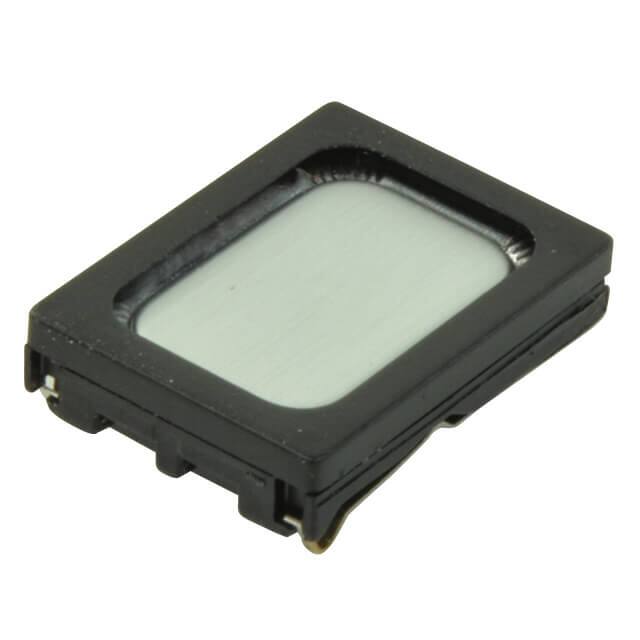

CMS-151135-078S-67

Teknik Özellikler

Shape

Rectangular

Material Magnet

Nd-Fe-B

Tip

General Purpose

Empedans

8Ohm

Power Max

1W

Nem Hassasiyeti (MSL)

Not Applicable

Port Location

Top

Maks. Oturma Yüksekliği

0.138 3.50mm

Fabrika Tedarik Süresi

11 Weeks

Power Rated

700mW

Efficiency Type

Sound Pressure Level (SPL)

Efficiency Dba

91.00

Frequency Range

100Hz~20kHz

Terminal

Spring Type

Ingress Protection

IP67 - Dust Tight, Waterproof

RoHS

NO

Frequencyselfresonant

550Hz

Material Cone

Polyester, Polyethylene Terephthalate (PET)

RoHS Durumu

RoHS Compliant

Efficiency Testing

700mW/100mm

Parça Durumu

Active

Ambalaj

Tray

Boyut / Ölçü

0.591Lx0.433W 15.00mmx11.00mm

Seri

CMS
