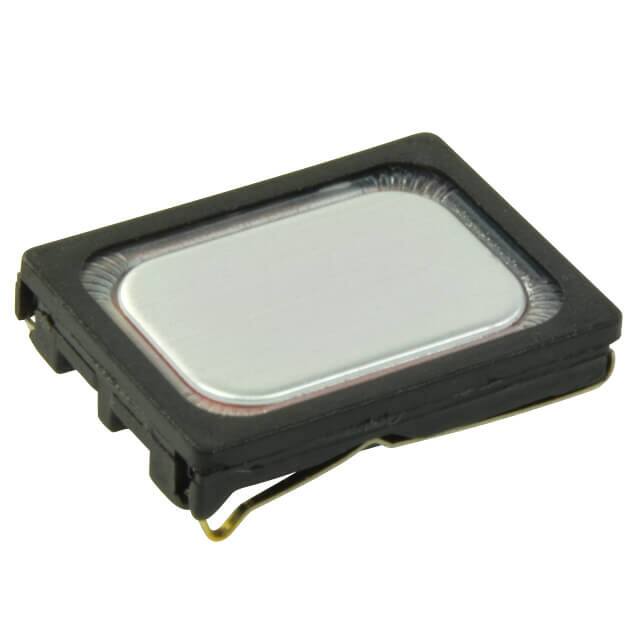

CMS-151125-076S-67

Teknik Özellikler

Efficiency Testing

700mW/100mm

Maks. Oturma Yüksekliği

0.098 2.50mm

Port Location

Top

RoHS Durumu

RoHS Compliant

Material Cone

Polyester, Polyethylene Terephthalate (PET)

Power Max

1W

Nem Hassasiyeti (MSL)

Not Applicable

Efficiency Type

Sound Pressure Level (SPL)

Power Rated

700mW

Fabrika Tedarik Süresi

11 Weeks

Seri

CMS

Boyut / Ölçü

0.591Lx0.433W 15.00mmx11.00mm

Ambalaj

Tray

Parça Durumu

Active

Ingress Protection

IP67 - Dust Tight, Waterproof

Frequency Range

100Hz~20kHz

Material Magnet

Nd-Fe-B

Shape

Rectangular

Efficiency Dba

92.50

Empedans

6Ohm

Terminal

Spring Type

Tip

General Purpose

Frequencyselfresonant

550Hz
